Ford Fiesta: Wipers and Washers / Rain Sensor. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Wipers and Washers / Rain Sensor. Removal and Installation

Removal

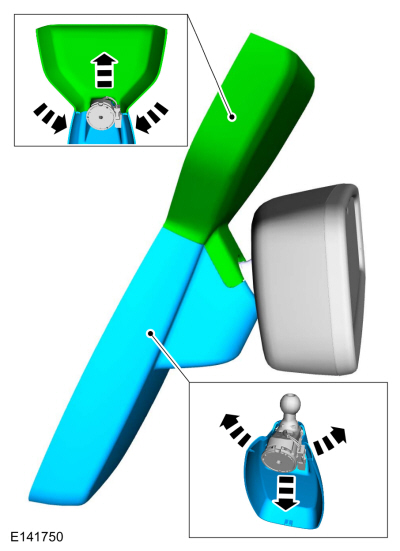

  1. Remove the rain sensor cover.
    • Remove the upper rain sensor cover.
    • Remove the lower rain sensor cover.

  1. NOTICE: After removing the bracket, wait for a minimum of 2 minutes before removing the rain sensor.

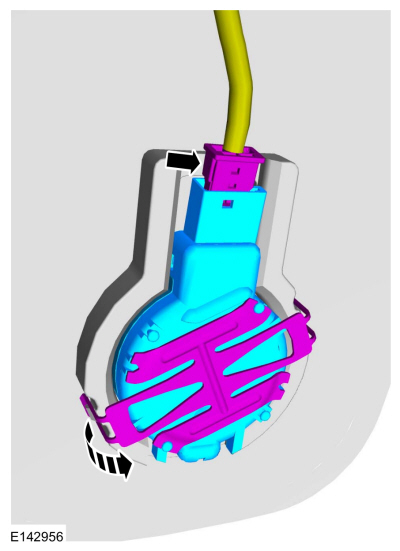

    Remove the rain sensor.
    • Disconnect the electrical connector.
    • Release the retainer and remove the rain sensor.

Installation

  1. NOTICE: Make sure that the surface is clean and free of foreign material.

    NOTICE: Make sure that the insulator pads are correctly positioned to prevent direct contact with other components.

    To install, reverse the removal procedure.
