Ford Fiesta: Climate Control System - General Information / Air Inlet Duct. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Climate Control System / Climate Control System - General Information / Air Inlet Duct. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the heater core and evaporator core housing - vehicles with: EMTC and remove the climate control housing - vehicles with: EATC .
Refer to: Heater Core and Evaporator Core Housing - Vehicles With: Electronic Manual Temperature Control (EMTC) (412-00 Climate Control System - General Information, Removal and Installation).
Refer to: Heater Core and Evaporator Core Housing - Vehicles With: Electronic Automatic Temperature Control (EATC) (412-00 Climate Control System - General Information, Removal and Installation).

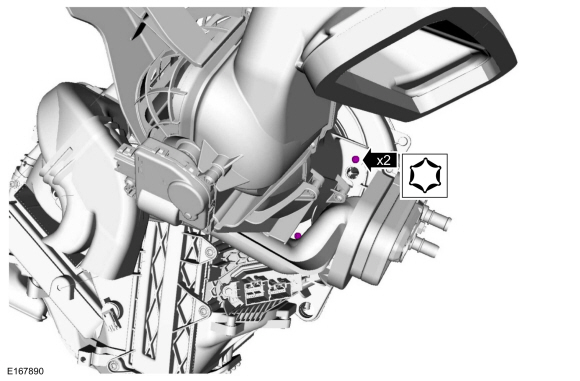

Remove the air inlet duct retainers.

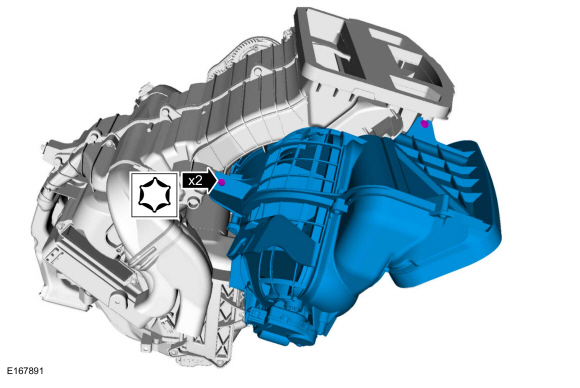

Remove the retainers and the air inlet duct.

Installation

To install, reverse the removal procedure.
