Ford Fiesta: Tire Pressure Monitoring System (TPMS) / Tire Pressure Monitoring System (TPMS) - Component Location. Description and Operation

Ford Fiesta 2014 - 2019 Service Manual / Suspension / Tire Pressure Monitoring System (TPMS) / Tire Pressure Monitoring System (TPMS) - Component Location. Description and Operation

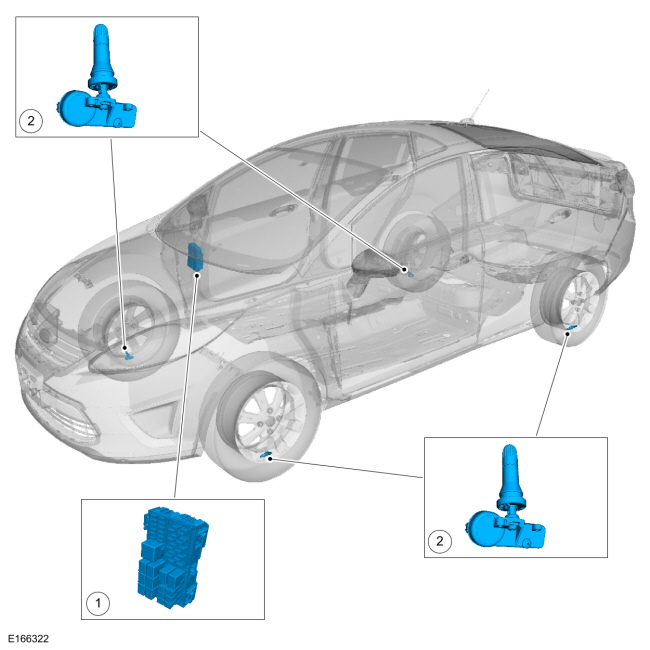

Item	Description
1	- Comments: BCM
2	1A189 Comments: TPMS sensor assembly (4 required)
