Ford Fiesta: Body Closures / Front Door. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Body Closures / Front Door. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the check arm bolt.
Torque: 18 lb.ft (25 Nm)

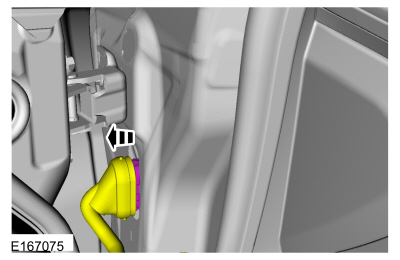

Disconnect the front door electrical connector.

NOTE: This step requires the aid of another technician.

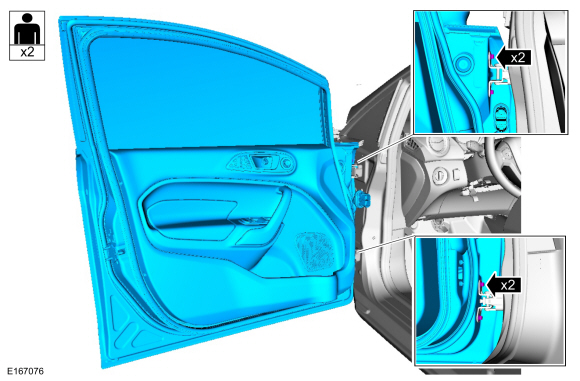

Remove the bolts and the door.
Torque: 18 lb.ft (24 Nm)

Installation

To install, reverse the removal procedure.

Check the alignment and correct if necessary.
Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).
