Ford Fiesta: Seatbelt Systems / Seatbelt Tongue Rotated On Belt. General Procedures

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Seatbelt Systems / Seatbelt Tongue Rotated On Belt. General Procedures

Adjustment

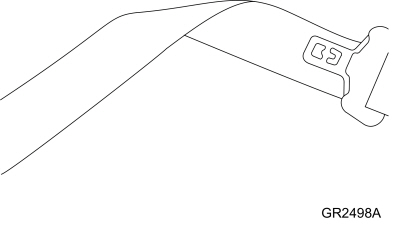

  1. Fold the safety belt as indicated.
  1. Pull the safety belt tongue over the fold in the safety belt.
