Ford Fiesta: Seatbelt Systems / Front Seatbelt Buckle. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Seatbelt Systems / Front Seatbelt Buckle. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front seat.
Refer to: Front Seat (501-10 Seating, Removal and Installation).

1. NOTE: Access from under front seat.

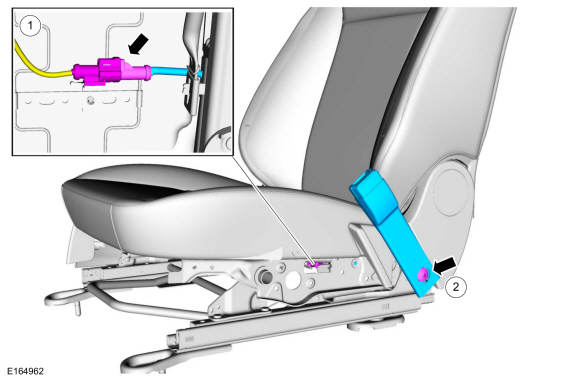

  Disconnect the seatbelt buckle electrical connector.
1. Remove the bolt and the seatbelt buckle.
  Torque: 35 lb.ft (48 Nm)

Installation

NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.
To install, reverse the removal procedure

Check the seatbelt system for correct operation.
Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
