Ford Fiesta: Roof Opening Panel / Roof Opening Panel Glass. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Roof Opening Panel / Roof Opening Panel Glass. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The roof opening panel must be open to the vent position.
On both sides.

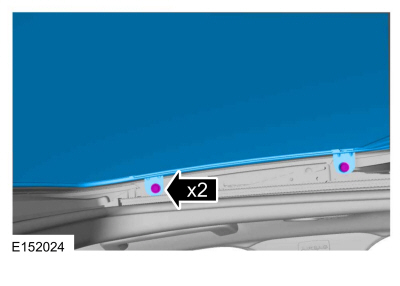

Remove the retainers.
Torque: 27 lb.in (3 Nm)

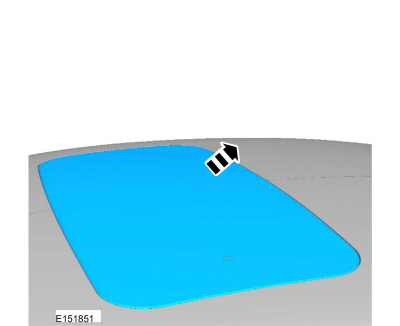

Remove the roof opening panel glass assembly.

Installation

To install, reverse the removal procedure.

Align the roof opening panel.
Refer to: Roof Opening Panel Alignment (501-17 Roof Opening Panel, General Procedures).

Roof Opening Panel Frame. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the headliner. Refer to: Headliner - 4-Door (501-05 Interior Trim and Ornamentation, Removal and Installation)...

Roof Opening Panel Motor. Removal and Installation

Special Tool(s) / General Equipment Wooden Block Interior Trim Remover Removal NOTE: Removal steps in this procedure may contain installation details...
