Ford Fiesta: Seating / Rear Seat Backrest. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Seating / Rear Seat Backrest. Removal and Installation

Removal

NOTE: The 40 percent backrest must be removed before the 60 percent backrest can be removed.

NOTE: Removal steps in this procedure may contain installation details.

All seats

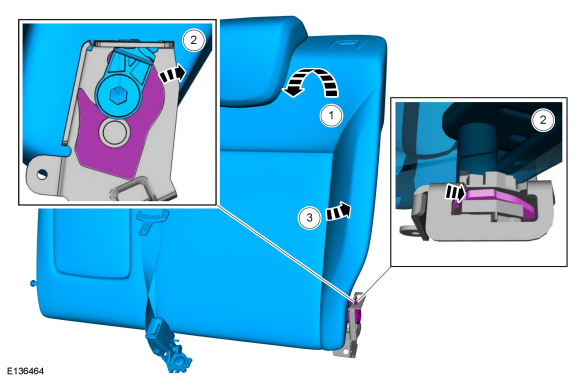

    1. Lower the backrest.
    1. Rotate the backrest hinge locking arm rearward and release the backrest.
    1. Remove the RH seat backrest.

5-Door

  1. Remove the rear seat cushion.
    Refer to: Rear Seat Cushion (501-10 Seating, Removal and Installation).

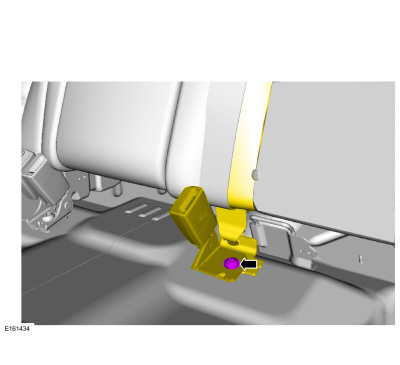

  1. Remove the bolt and position the rear center safety belt aside.
    Torque: 35 lb.ft (48 Nm)

All seats

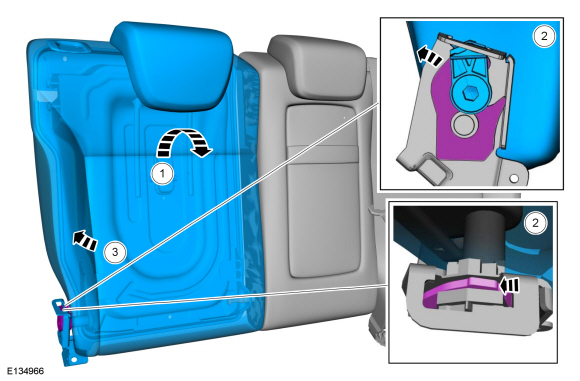

    1. Lower the backrest.
    1. Rotate the backrest hinge locking arm rearward and release the backrest.
    1. Remove the LH seat backrest.

Installation

  1. To install, reverse the removal procedure.
