Ford Fiesta: Glass, Frames and Mechanisms / Rear Door Window Control Switch. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Glass, Frames and Mechanisms / Rear Door Window Control Switch. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

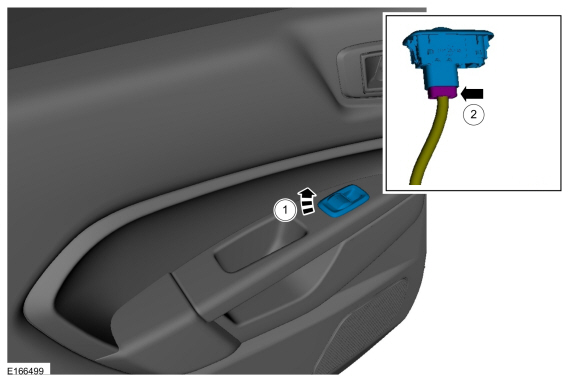

Remove the rear door window control switch.
1. Remove the rear door window control switch from the door trim panel.
1. Disconnect the rear door window control switch electrical connector.

Installation

To install, reverse the removal procedure.
