Ford Fiesta: Glass, Frames and Mechanisms / Front Door Window Control Switch. Removal and Installation

Removal

Driver's door

1. Remove the front door trim panel.
   Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

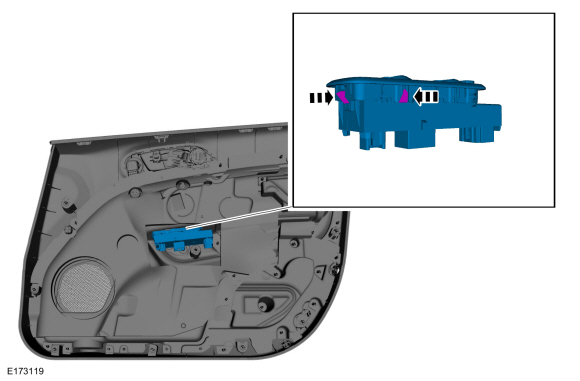

1. Release the window control switch retaining tabs and remove the master window control switch from the door trim panel.


Passenger Door

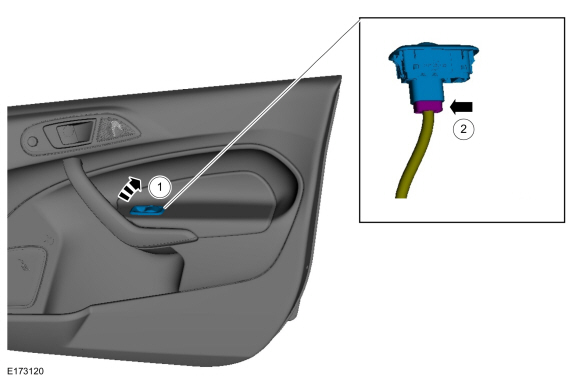

1.
   Remove the front door window control switch.

   1. Remove the front door window control switch from the door trim panel.

   2. Disconnect the electrical connector.


Installation

1. To install, reverse the removal procedure.


Vehicles With: One-Touch Up and Down Driver Window

1. NOTE: The master window control switch and the LH window motor must be initialized whenever battery voltage has been removed from the driver window control switch for greater than 3 minutes (for example, the battery or the master window switch is disconnected) or if a new driver window control switch is installed.

   If the door is equipped with one touch up/down, carry out the power door window initialization.
   Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
