Ford Fiesta: Handles, Locks, Latches and Entry Systems / Interior Front Door Handle. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Interior Front Door Handle. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

  1. Remove the front door trim panel.
    Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

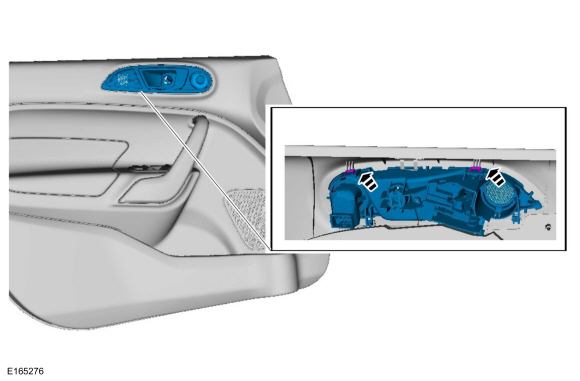

  1. Release the retaining clips and remove the interior rear door handle.

  1. NOTE: This step is only necessary if installing a new component.

    If equipped.

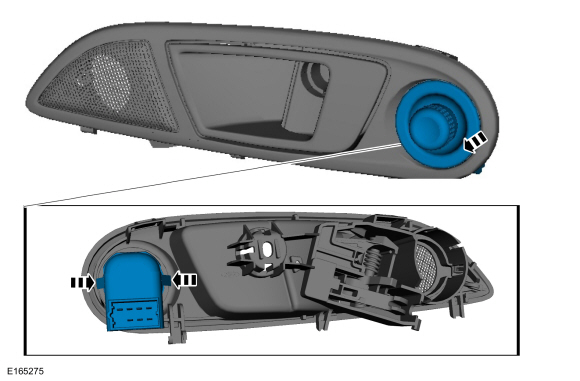

    Remove the exterior mirror control switch.

  1. NOTE: This step is only necessary if installing a new component.

    If equipped.

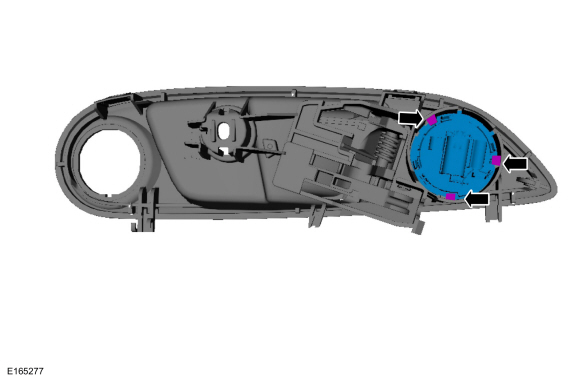

    Release the tabs and remove the front door tweeter speaker.

Installation

  1. To install, reverse the removal procedure.
