Ford Fiesta: Handles, Locks, Latches and Entry Systems / Hood Latch Release Handle. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Hood Latch Release Handle. Removal and Installation

Removal

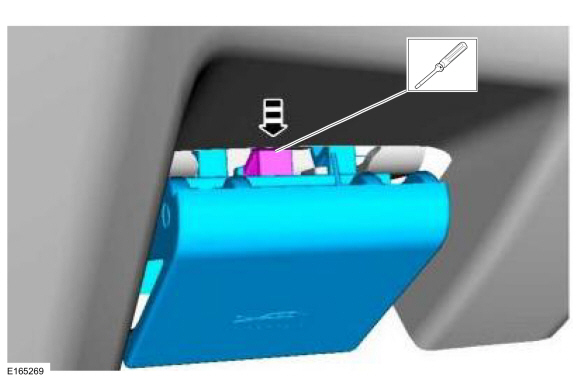

Depress the hood latch release handle retaining tab and pull the hood latch release handle.

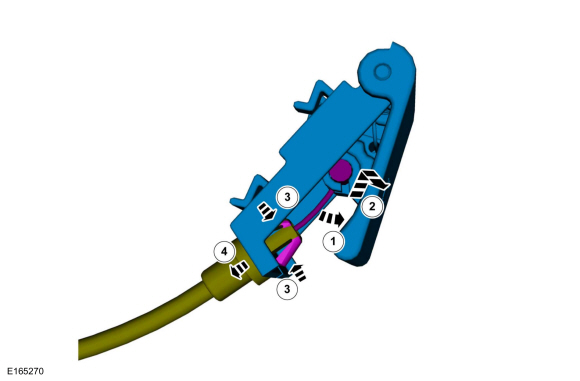

Disconnect the hood release cable from the hood latch release handle.

Installation

To install, reverse the removal procedure.
