Ford Fiesta: Anti-Lock Brake System (ABS) and Stability Control / Rear Wheel Speed Sensor. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Brake System / Anti-Lock Brake System (ABS) and Stability Control / Rear Wheel Speed Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

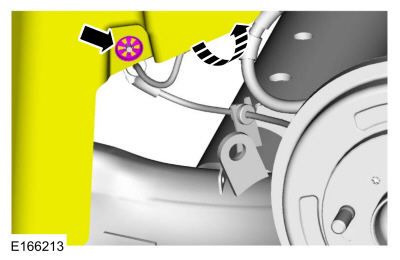

Remove the retainer and pull the rear splash shield outward.

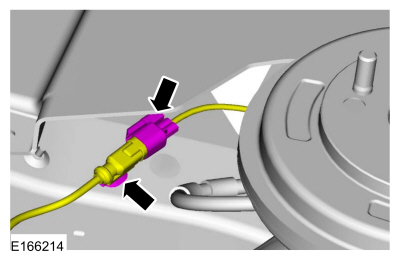

Disconnect the electrical connector and detach the wiring retainer.

NOTE: Note the position of the component before removal.

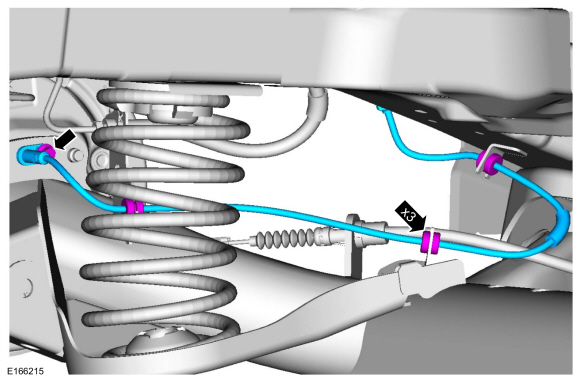

Detach the wiring retainers, remove the bolt and the rear wheel speed sensor.
Torque: 80 lb.in (9 Nm)

Installation

To install, reverse the removal procedure.

Front Wheel Speed Sensor. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation)...

Rear Wheel Speed Sensor - 1.6L EcoBoost (132kW/180PS) – Sigma. Removal and Installation

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the wheel and tire. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation)...
