Ford Fiesta: Handles, Locks, Latches and Entry Systems / Interior Rear Door Handle. Removal and Installation
Removal
NOTE:
LH side shown, RH side similar.
-
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

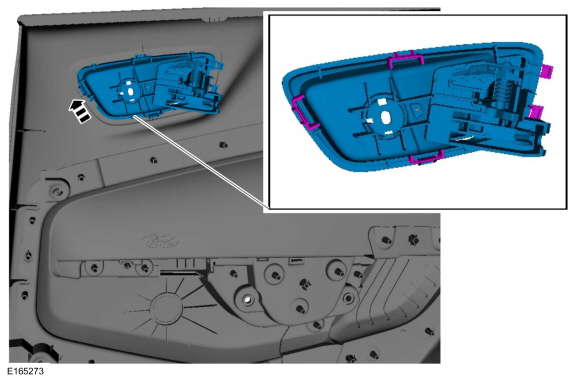

Release the retaining clips and remove the interior rear door handle.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
LH side shown, RH side similar.
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Removal
Remove the luggage compartment lid moulding - 4 door.
Refer to: Luggage Compartment Lid Moulding - 4-Door (501-08 Exterior Trim and Ornamentation, Removal and Installation)...
