Ford Fiesta: Climate Control System - General Information / Ambient Air Temperature Sensor. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Climate Control System / Climate Control System - General Information / Ambient Air Temperature Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the driver side headlamp assembly.
Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

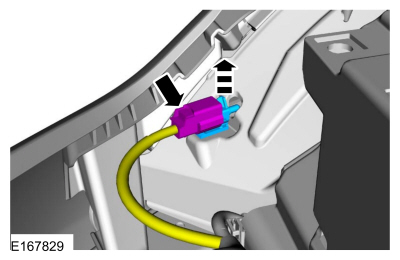

Disconnect the electrical connector and remove the ambient air temperature sensor.

Installation

To install, reverse the removal procedure.
