Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the brake pedal and bracket.
Refer to: Brake Pedal and Bracket (206-06 Hydraulic Brake Actuation, Removal and Installation).

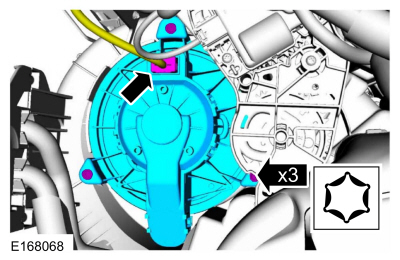

Disconnect the electrical connector, remove the retainers and the blower motor.

Installation

To install, reverse the removal procedure.
