Ford Fiesta: Electronic Engine Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Variable Camshaft Timing (VCT) Oil Control Solenoid. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Electronic Engine Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Variable Camshaft Timing (VCT) Oil Control Solenoid. Removal and Installation

Materials

Name	Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil XO-5W20-Q1SP	WSS-M2C945-B1

Removal

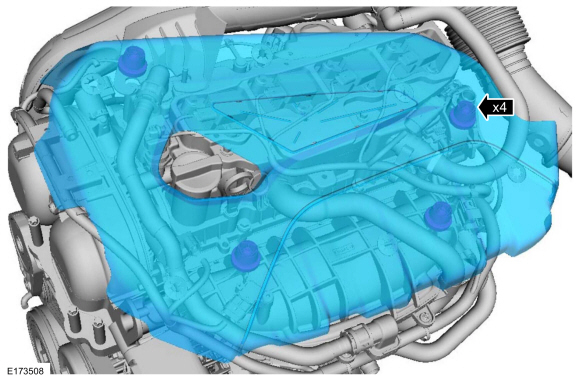

Remove the engine appearance cover.

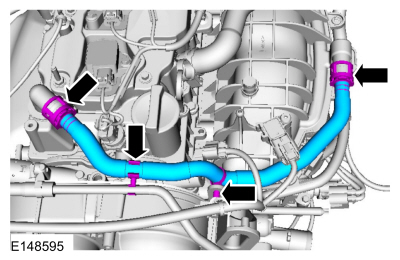

Disconnect the crankcase breather tube.

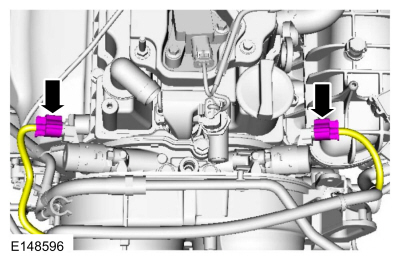

Disconnect the electrical connectors.

NOTE: The O-ring seals are to be reused unless damaged.

NOTE: Note the position of the components before removal.
Remove the bolts and the VCT oil control solenoids.

Installation

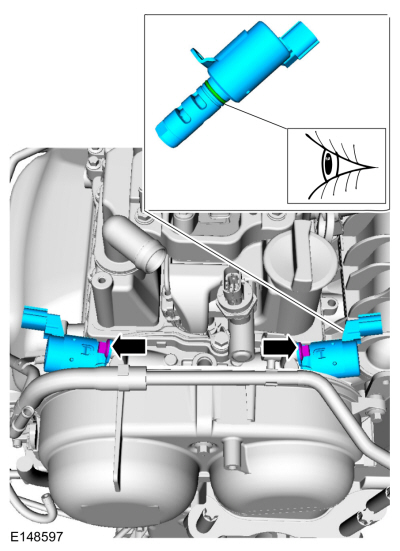

NOTE: Make sure that the components are installed to the position noted before removal.
- Lubricate the o ring with clean engine oil.
  Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)

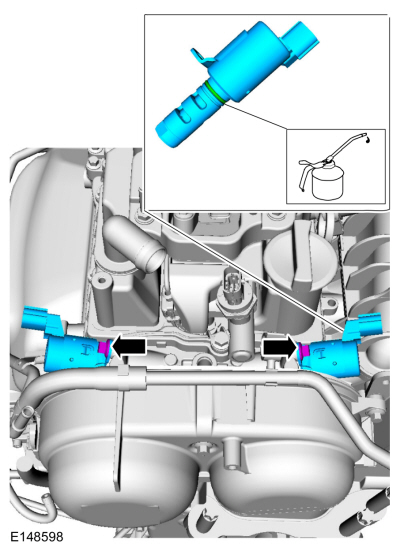

- Install the VCT oil control solenoids and tighten the bolts.
  Torque: 71 lb.in (8 Nm)

Connect the electrical connectors.

Connect the crankcase breather tube.

Install the engine appearance cover.
