Removal

NOTE: Removal steps in this procedure may contain installation details.

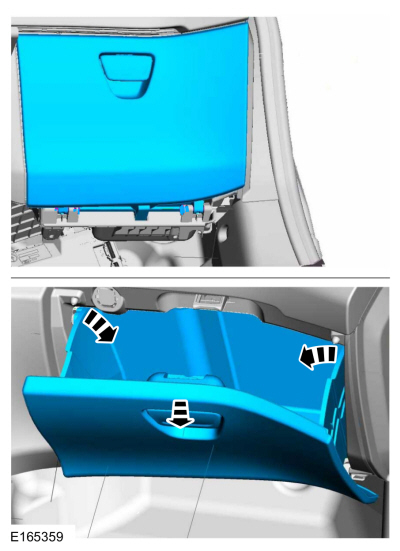

  1. Release the retaining tabs and remove the glove compartment.

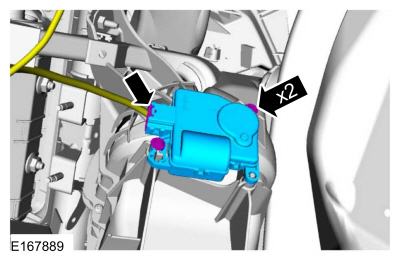

  1. Disconnect the electrical connector, remove the retainers and the air inlet door actuator.

Installation

  1. To install, reverse the removal procedure.
