Ford Fiesta: Seatbelt Systems / Seatbelt Twisted at the Seatbelt Guide. General Procedures

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Seatbelt Systems / Seatbelt Twisted at the Seatbelt Guide. General Procedures

Adjustment

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

If necessary, remove necessary trim panel(s).

NOTE: Typical D-ring shown, others similar.

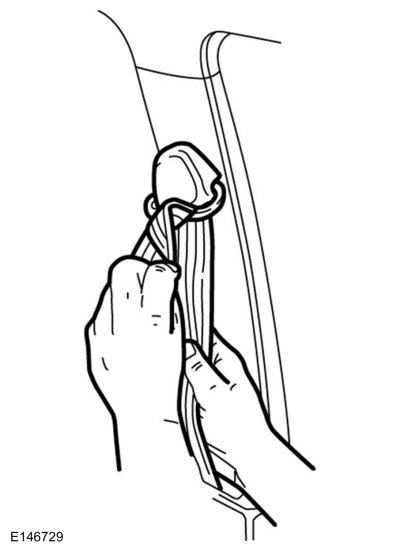

Grasp the safety belt webbing at the D-ring and fold the twisted portion of the safety belt webbing over itself.

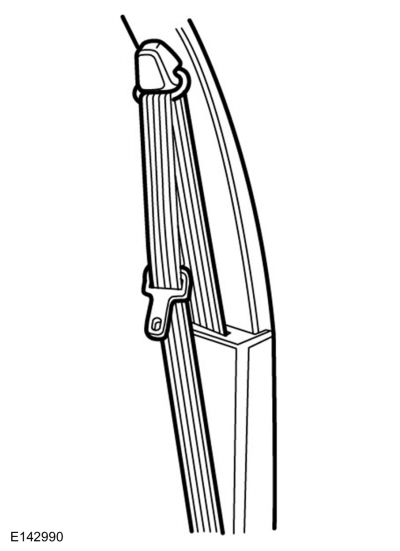

Feed the folded portion of the safety belt webbing through the D-ring to remove the twist from the safety belt webbing.

Locked Seatbelt Retractor Releasing. General Procedures

Repair NOTE: If the seatbelt webbing does not extract from the seatbelt retractor from the stowed position, this may be due to a normal condition which happens when the seatbelt retracts at a high rate of speed...

Seatbelt Cleaning. General Procedures

Cleaning WARNING: Do not bleach or re-dye the seatbelt webbing, as the webbing may weaken. Failure to follow this instruction may increase the risk of serious personal injury or death in a crash...
