Ford Fiesta: Anti-Lock Brake System (ABS) and Stability Control / Front Wheel Speed Sensor. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Brake System / Anti-Lock Brake System (ABS) and Stability Control / Front Wheel Speed Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

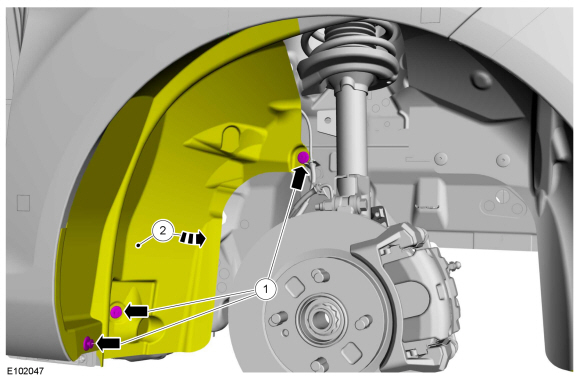

1. Remove the retainers.
1. Position aside the fender splash shield.

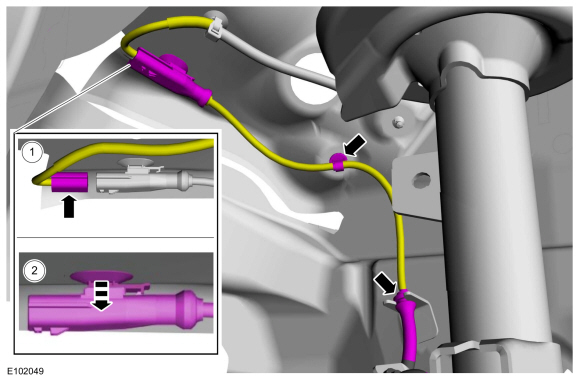

- Disconnect the front wheel speed sensor electrical connector.
- Detach the wiring retainers.

1. NOTE: Make sure that the sensor housing is clean and free of foreign material.

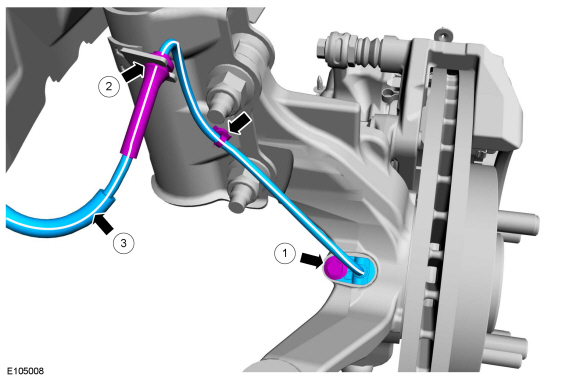

  Remove the bolt and detach the front wheel speed sensor from the wheel knuckle.
  Torque: 80 lb.in (9 Nm)
1. NOTE: Note the position of the component before removal.
  Detach the wiring retainers.
1. NOTE: Make sure the alignment line is not twisted during installation.
  Remove the front wheel speed sensor.

Installation

To install, reverse the removal procedure.
