DISASSEMBLY

NOTE: Disassembly steps in this procedure may contain assembly details.

Remove the rear bumper cover.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

NOTE: If equipped.
Remove the rear parking aid sensor.
Refer to: Rear Parking Aid Sensor (413-13A Parking Aid - Vehicles With: Rear Parking Aid, Removal and Installation).

NOTE: 5 door shown, 4 door is similar.

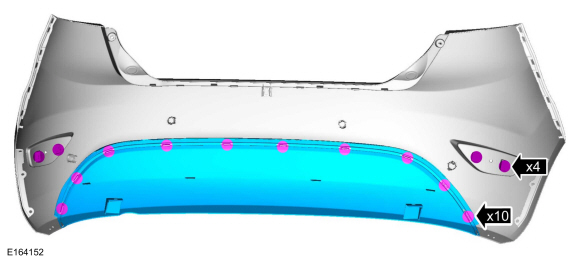

Release the tabs, remove the reflectors and the center rear bumper cover.

ASSEMBLY

To assemble, reverse the disassembly procedure.

Front Bumper Cover. Disassembly and Assembly

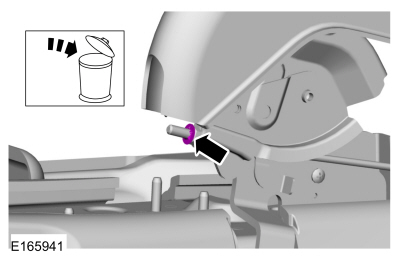

DISASSEMBLY NOTE: Disassembly steps in this procedure may contain assembly details. Remove the front bumper cover. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation)...
