Ford Fiesta: Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Radiator. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Radiator. Removal and Installation

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

Removal

NOTE: Removal steps in this procedure may contain installation details.

Drain the cooling system.
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma, General Procedures).

Remove the cooling fan motor and shroud.
Refer to: Cooling Fan Motor and Shroud (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma, Removal and Installation).

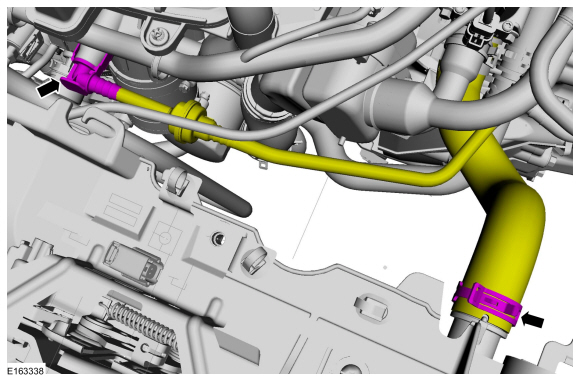

Depress the tab and disconnect the vent tube. Release the clamp and disconnect the upper radiator hose.
Use the General Equipment: Hose Clamp Remover/Installer

NOTICE: The component must be removed by hand, the use of tools is prohibited.

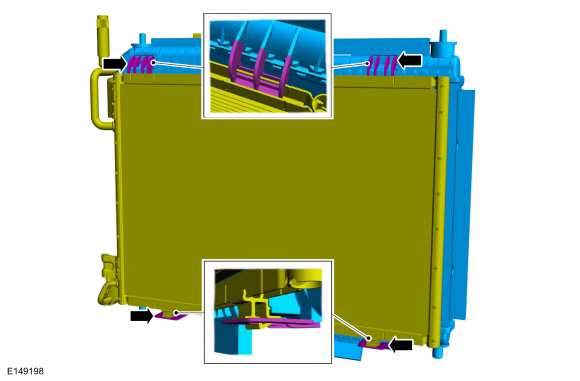

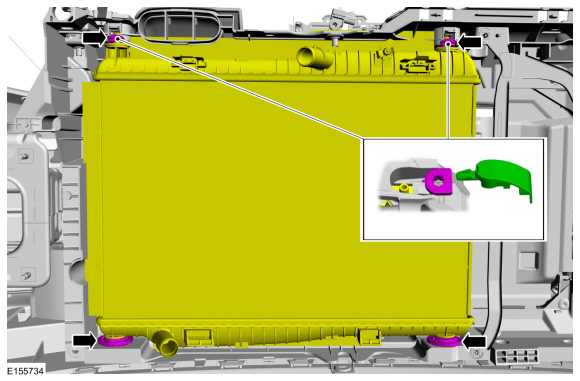

Release the tabs and remove the radiator support brackets.

Unclip the lower tabs and lift the radiator upward while pressing down on the A/C condenser. Remove the radiator.

Installation

To install, reverse the removal procedure.
