Ford Fiesta: Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Radiator Lower Hose. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Radiator Lower Hose. Removal and Installation

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

Removal

  1. Drain the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma, General Procedures).
  1. Remove the generator.
    Refer to: Generator - 1.6L EcoBoost (132kW/180PS) – Sigma (414-02 Generator and Regulator, Removal and Installation).

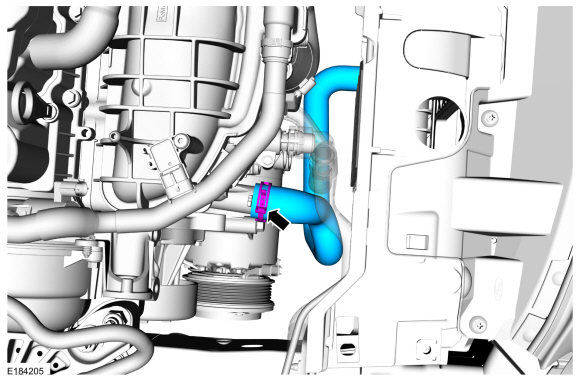

  1. Release the hose clamp and remove the lower radiator hose.
    Use the General Equipment: Hose Clamp Remover/Installer

Installation

  1. To install, reverse the removal procedure.
  1. Fill and bleed the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma, General Procedures).
