Ford Fiesta: Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Heater Hoses. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma / Heater Hoses. Removal and Installation

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

Removal

Remove the battery tray.
Refer to: Battery Tray - 1.6L Duratec-16V Ti-VCT (88kW/120PS) – Sigma (414-01 Battery, Mounting and Cables, Removal and Installation).

Drain the cooling system.
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma, General Procedures).

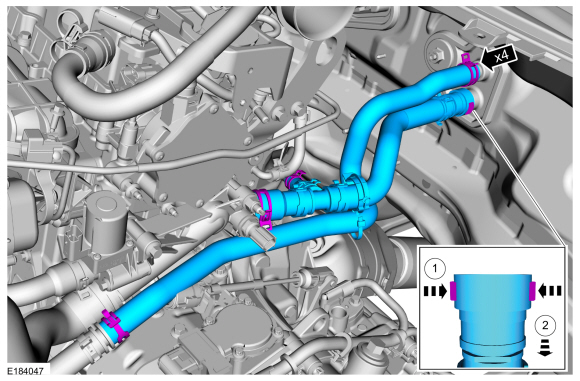

Release the hose clamps and remove the heater hoses.
Use the General Equipment: Hose Clamp Remover/Installer

Installation

To install, reverse the removal procedure.

Fill and bleed the cooling system.
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03B Engine Cooling - 1.6L EcoBoost (132kW/180PS) – Sigma, General Procedures).

Degas Bottle. Removal and Installation
