Ford Fiesta: Seating / Lumbar Assembly. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Seating / Lumbar Assembly. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the front seat backrest cover.
Refer to: Front Seat Backrest Cover (501-10 Seating, Removal and Installation).

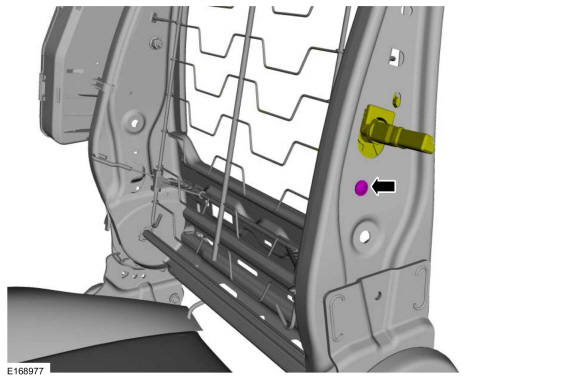

Remove the screw and position the lumbar actuator aside.
Torque: 31 lb.in (3.5 Nm)

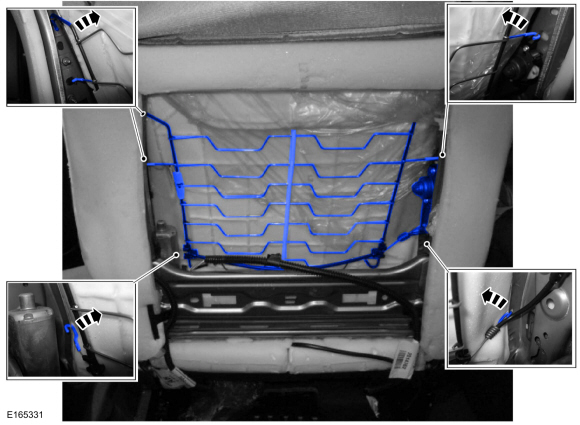

Detach the lumbar assembly J-hooks and remove the lumbar assembly.

Installation

To install, reverse the removal procedure.
