Ford Fiesta: Exterior Lighting / Rear Lamp Bulb. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Lighting / Exterior Lighting / Rear Lamp Bulb. Removal and Installation

Removal

4-Door sedan rear outer lamp assembly

NOTE: LH shown, RH similar.

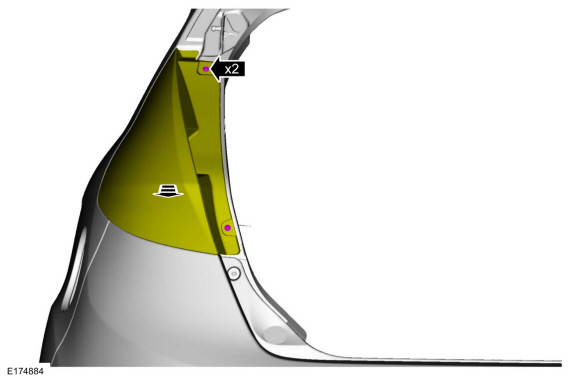

  1. Remove the outer rear lamp assembly.
    Refer to: Rear Lamp Assembly (417-01 Exterior Lighting, Removal and Installation).

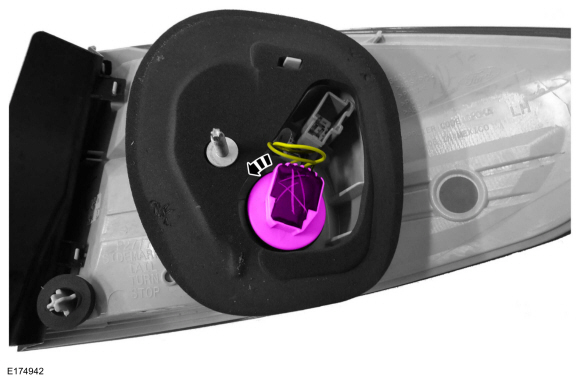

  1. Rotate the bulb holder counter clock-wise and position the bulb holder.

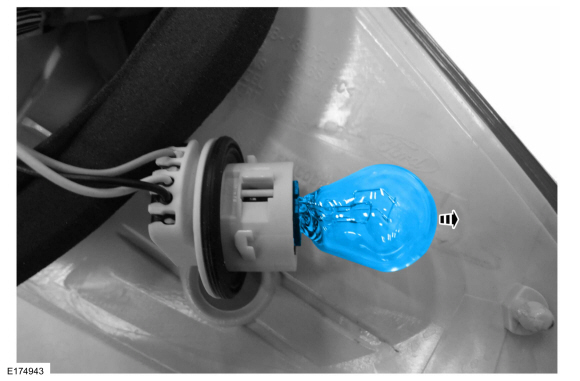

  1. Remove the bulb from the bulb holder.

4-Door sedan rear inner lamp assembly

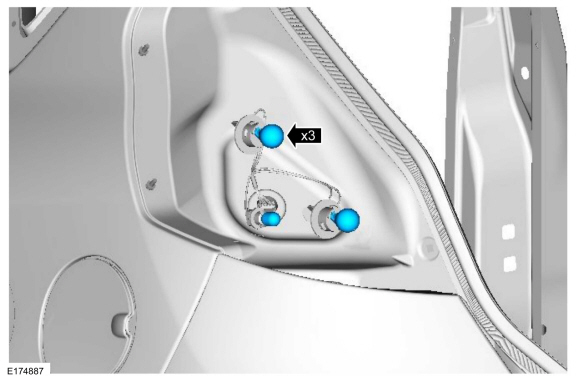

  1. Remove the rear inner lamp assembly.
    Refer to: Rear Lamp Assembly (417-01 Exterior Lighting, Removal and Installation).

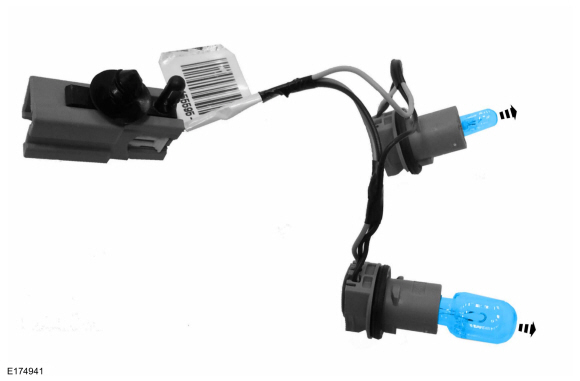

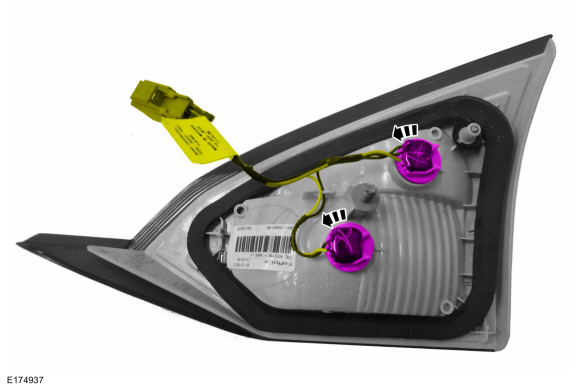

  1. Rotate the bulb holders counter clock-wise and position aside the wiring harness.
  1. Separate the bulb from the bulb holder.

5-door

  1. Remove the screws and position the rear lamp assembly.

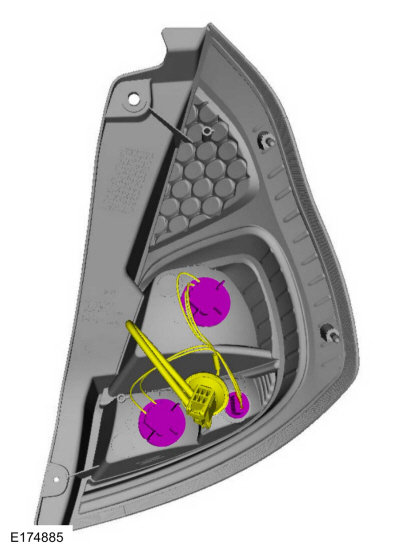

  1. Remove the bulb holder and position aside the wiring harness.
  1. Remove the bulb from the bulb holder.

Installation

  1. To install, reverse the removal procedure.
