Ford Fiesta: Handles, Locks, Latches and Entry Systems / Luggage Compartment Lid Latch. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Luggage Compartment Lid Latch. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

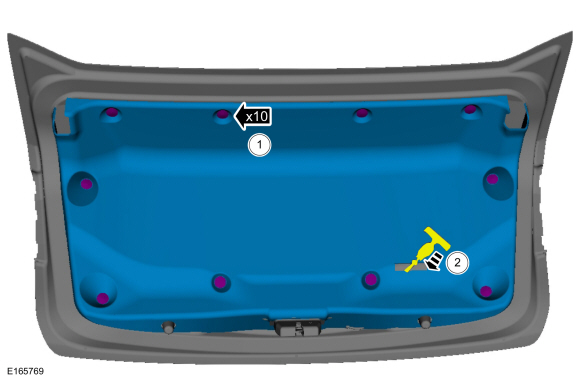

  1. Remove the luggage compartment lid trim panel.
    1. Remove the retainers from luggage compartment lid trim panel.
    1. Position the luggage compartment lid latch emergency release handle.

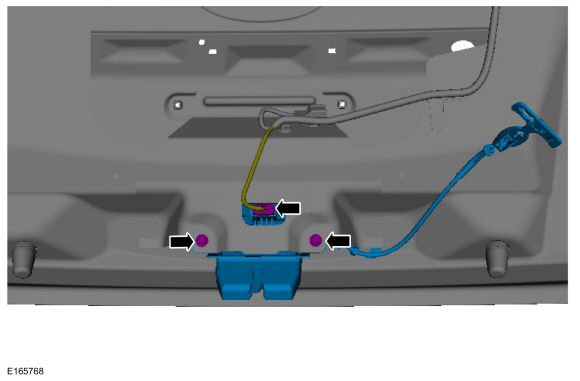

  1. Remove the luggage compartment lid latch.
    • Disconnect the luggage compartment lid latch electrical connector.
    • Remove the luggage compartment lid latch retainers and remove the luggage compartment lid latch..
      Torque: 80 lb.in (9 Nm)

Installation

  1. To install, reverse the removal procedure.
