Ford Fiesta: Interior Trim and Ornamentation / Loadspace Trim Panel - 5-Door. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Interior Trim and Ornamentation / Loadspace Trim Panel - 5-Door. Removal and Installation

Removal

NOTE: RH side shown, LH side similar.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: To avoid damage to the trim panels, remove any retaining clips from the body and attach them to the trim panels before installing.

  1. Remove the C-pillar upper trim panel.
    Refer to: C-Pillar Upper Trim Panel - 5-Door (501-05 Interior Trim and Ornamentation, Removal and Installation).

  1. Remove the liftgate scuffplate trim panel.
    • Remove the pin-type retainers.

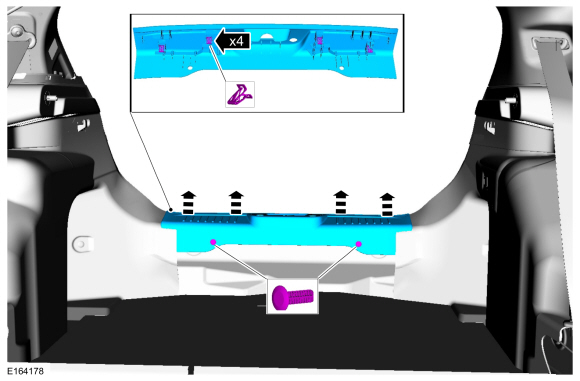

    • Release the clips and remove the liftgate scuffplate trim panel.

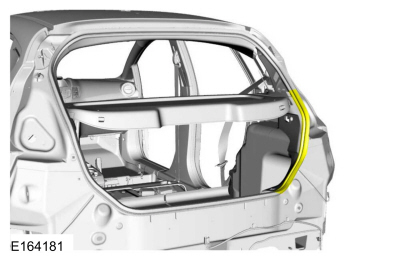

  1. Position aside the liftgate weatherstrip.

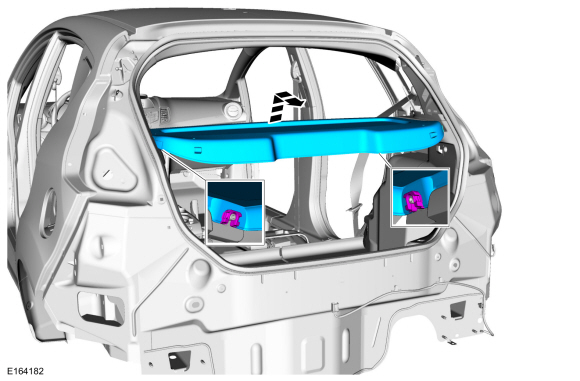

  1. Lift up and out and remove the package cover.

  1. Remove the C-pillar trim panel.
    1. Remove the retainer.
    1. Release the clips.

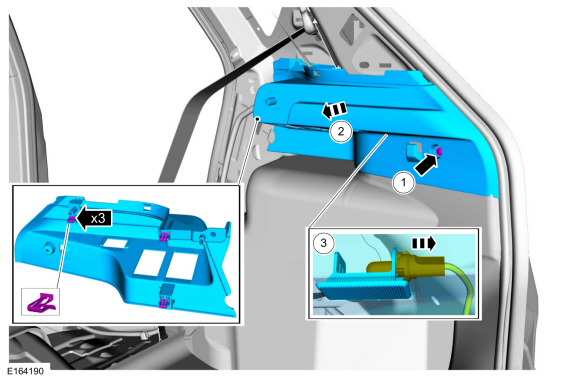

    1. Position aside the rear interior lamp bulb and remove the C-pillar trim panel.

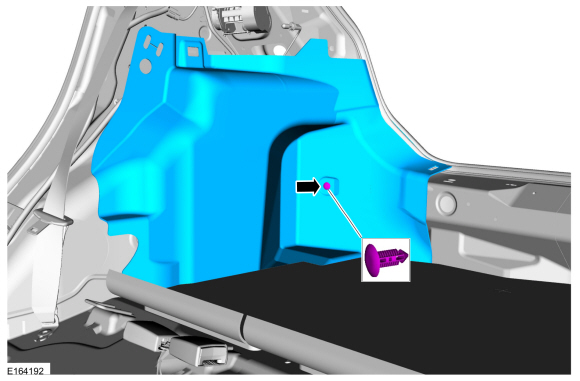

  1. Remove the pin-type retainer and the loadspace trim panel.

Installation

  1. To install, reverse the removal procedure.
