Ford Fiesta: Handles, Locks, Latches and Entry Systems / Front Door Lock Cylinder. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Front Door Lock Cylinder. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

Remove the access plug and loosen the exterior front door handle retaining screw.

Remove the front door lock cylinder.

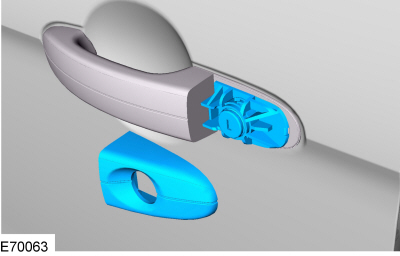

- Remove the front door handle cover assembly.
- Remove the front door lock cylinder.

Installation

To install, reverse the removal procedure.

Exterior Rear Door Handle. Removal and Installation

Removal NOTE: LH side shown, RH side similar. Remove the access plug and loosen the exterior rear door handle retaining screw...

Ignition Lock Cylinder. Removal and Installation

Removal Non-functional lock cylinder NOTE: For non-functional ignition lock cylinders, replace the ingition lock cylinder housing. Replace the ingition lock cylinder housing...
