Removal

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.
Follow the health and safety precautions.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

Vehicles with 1.0L EcoBoost or 1.6L EcoBoost engine

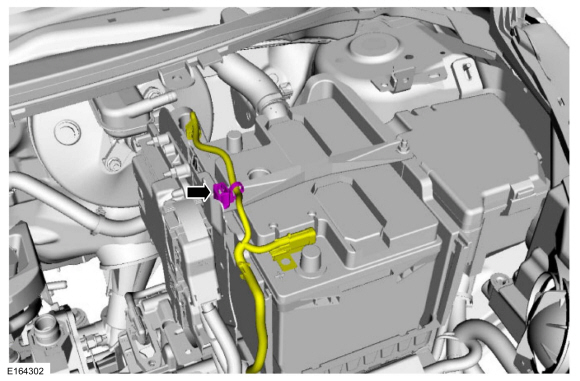

Detach the retainer and position aside the wire harness.

All vehicles

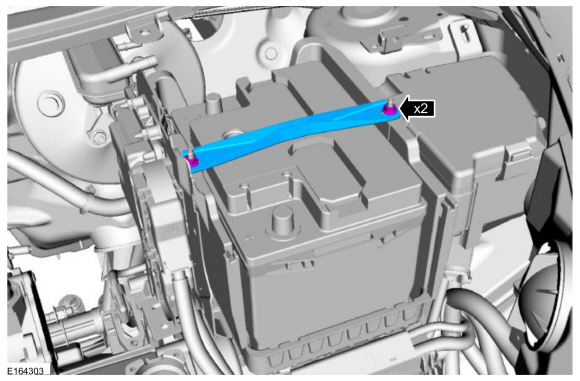

Remove the nuts and the battery hold-down bracket.
Torque: 44 lb.in (5 Nm)

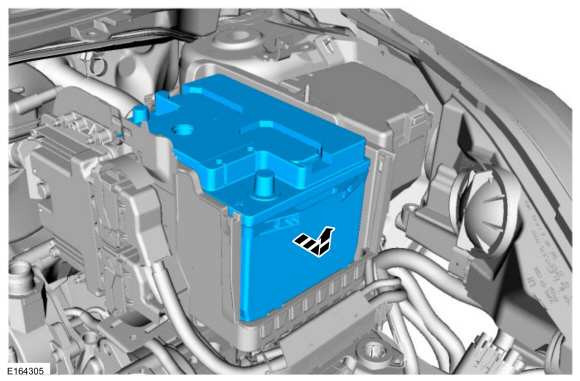

Remove the battery.

Installation

To install, reverse the removal procedure.

Vehicles with 1.0L EcoBoost or 1.6L EcoBoost engine

If replacing a battery, use the scan tool to carry out the Battery Monitoring System (BMS) reset after the battery is connected.
