Ford Fiesta: Manual Transmission - 6-Speed Manual Transmission – B6 / Transmission Fluid Level Check. General Procedures

Ford Fiesta 2014 - 2019 Service Manual / Manual Transmission, Clutch, Transfer Case and Power Transfer Unit / Manual Transmission - 6-Speed Manual Transmission – B6 / Transmission Fluid Level Check. General Procedures

Materials

Name	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

Check

With the vehicle in N , position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

If equipped.

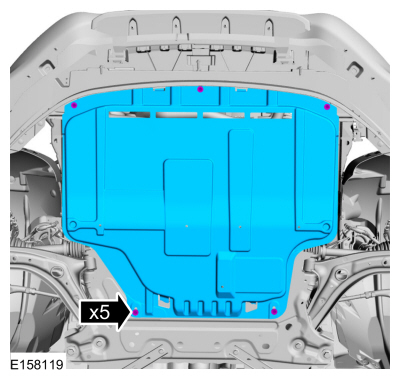

Remove the retainers and the underbody shield.

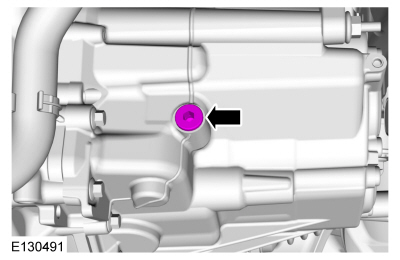

Remove the fill plug.

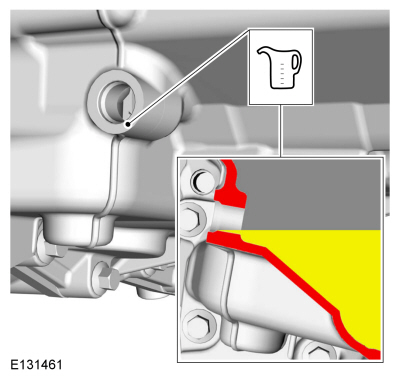

Add transmission fluid as necessary.
Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

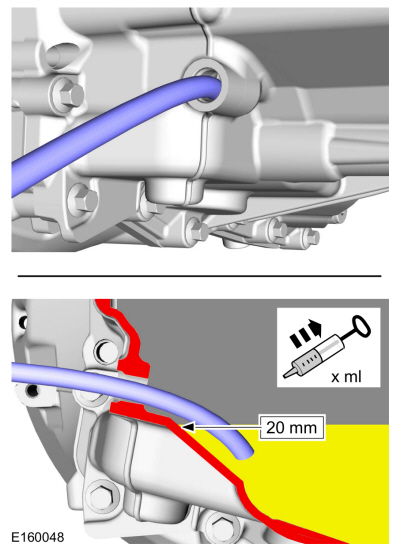

Remove enough fluid to be 01 in (20 mm) below fill hole.

Install the fill plug.
Torque: 30 lb.ft (40 Nm)

If equipped.
Install the underbody shield.
