Ford Fiesta: Manual Transmission - 6-Speed Manual Transmission – B6 / Transmission. Disassembly
Special Tool(s) /
General Equipment
 |
307-003
(T57L-500-B)
Holding Fixture, Transmission |
| Puller |
| Punch |
WARNING:
Before beginning any service procedure in this section, refer to
Safety Warnings in section 100-00 General Information. Failure to
follow this instruction may result in serious personal injury.
-

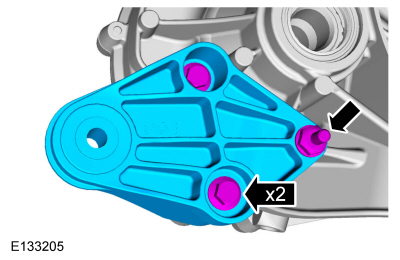

Remove the bolts and the roll restrictor bracket.
-

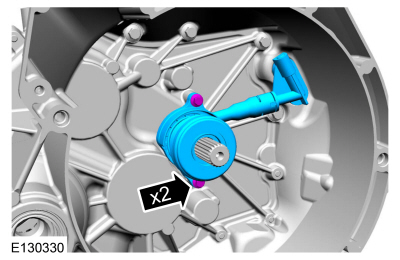

Remove the bolts and the slave cylinder.
-
Install the special tool on the clutch housing and install the
transmission on a bench. Remove and discard the RH halfshaft seal and
the transmission case bolts.

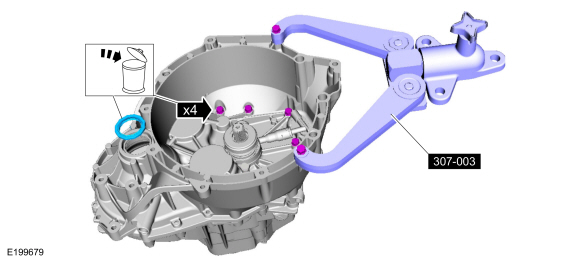

Install Special Service Tool: 307-003
(T57L-500-B)
Holding Fixture, Transmission.
-

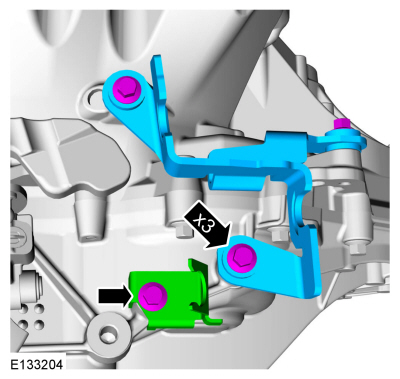

Remove the bolts and remove the shift cable brackets.
-
NOTE:
Make sure that the selector lever is in the neutral (N) position.

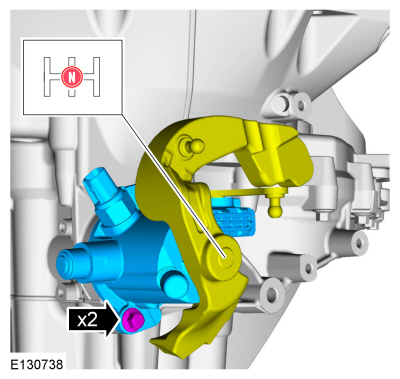

Position the selector mechanism in neutral, remove the bolts and remove selector mechanism.
-
Install new transmission shaft support bolts.
-
Remove and discard the transmission case bolts and the halfshaft seal.
-

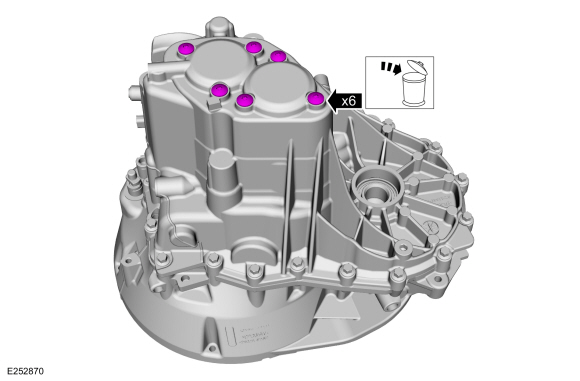

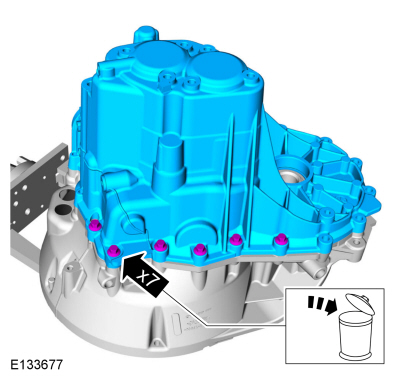

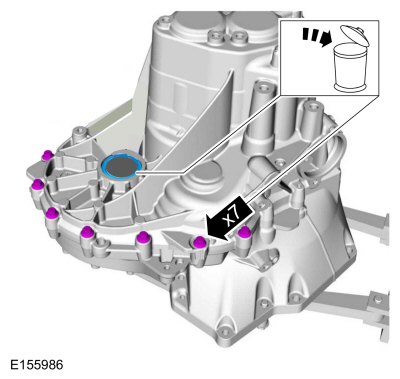

Remove and discard the transmission case bolts and remove the transmission case.
-
NOTE:
Note the position of the lube tube for assembly.

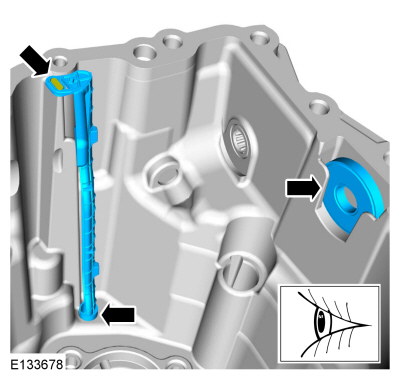

Remove the lube tube and the magnet from the transmission case.
-

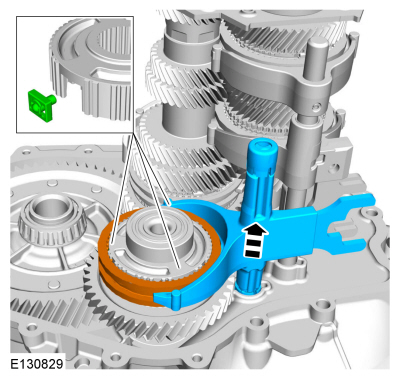

Remove the reverse shift fork and the reverse synchronizer detents and the sleeve.
-
NOTE:
The differential ring gear may hang up on the shaft assemblies.

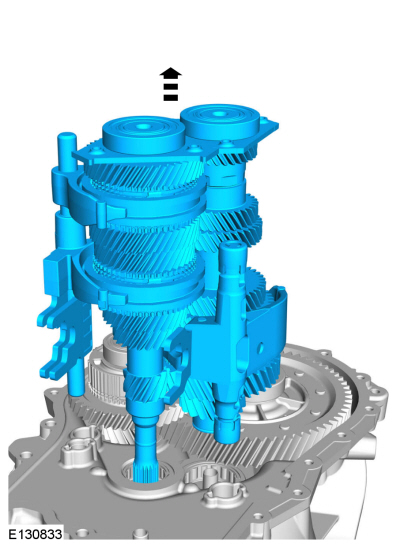

Remove the input and output shaft assemblies.
-
-
Position aside the differential.
-
Remove the reverse idler gear.
-

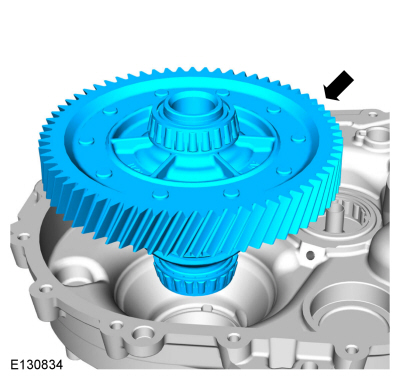

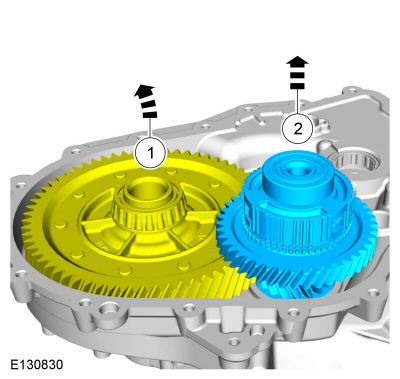

Remove the differential.
-

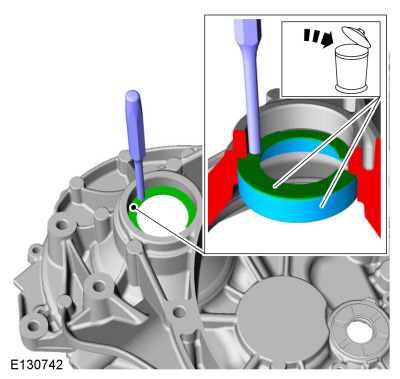

Using a punch, drive the differential bearing cup and shim
out of the clutch housing. Remove and discard the bearing cup and the
shim.
Use the General Equipment: Punch
-

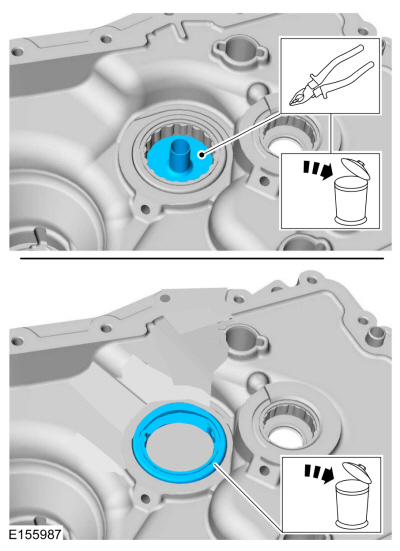

Remove and discard the lube funnel. Remove and discard the front output shaft roller bearing.
-

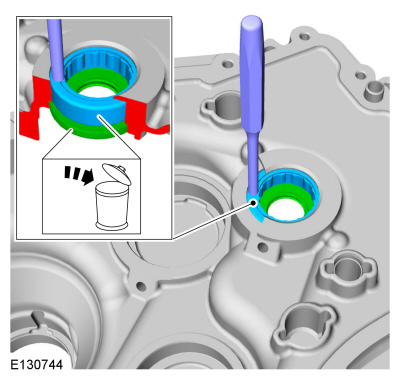

Remove and discard the input shaft front bearing and seal.
Use the General Equipment: Punch
-

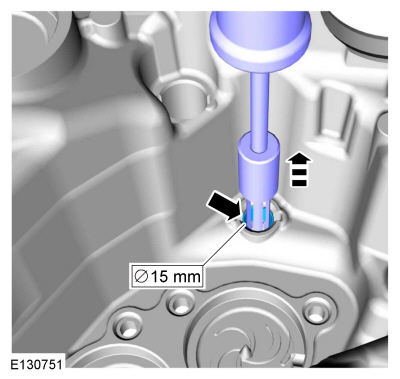

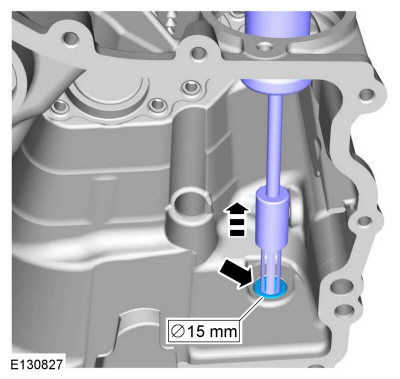

Remove the shift rod bushing from the clutch housing.
Use the General Equipment: Puller
-

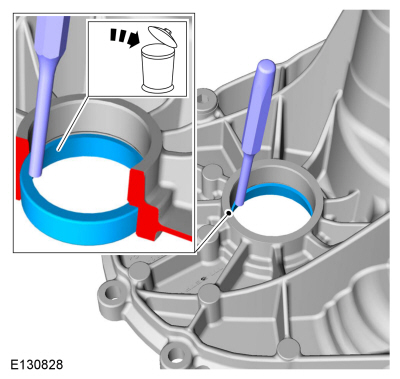

Remove and discard the differential bearing cup from the transmission case.
Use the General Equipment: Punch
-

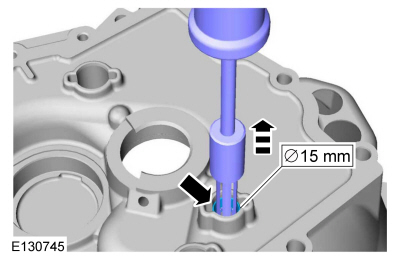

Remove the shift rod bushing from the transmission case.
Use the General Equipment: Puller
-
Remove the selector mechanism bearing.
Use the General Equipment: Puller
Special Tool(s) /
General Equipment
303-1502Lifting Device EngineTKIT-2012A-FLTKIT-2012A-ROW
303-F072Support Bar, Engine
Transmission Jack
Retaining Strap
Wooden Block
If equipped...
Special Tool(s) /
General Equipment
205-062Installer, Differential Bearing
Puller
Bearing Separator
Materials
Name
Specification
Motorcraft® Dual Clutch Transmission FluidXT-11-QDC
WSS-M2C200-D2
DISASSEMBLY
NOTICE:
Use vise jaw protectors...
