Ford Fiesta: Steering Column / Steering Column Shaft. Removal and Installation
Special Tool(s) / General Equipment
| Steering Wheel Holder |
Removal
NOTE: The removal steps in this procedure may include installation details.
-
NOTICE: Do not allow the steering column to rotate while the steering column shaft is disconnected or damage to the steering column internal sensor may result.

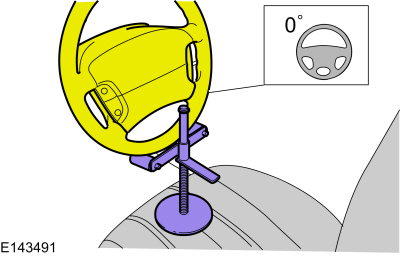

Using a suitable holding device, hold the steering wheel in the straight-ahead position.
Use the General Equipment: Steering Wheel Holder
 |
-

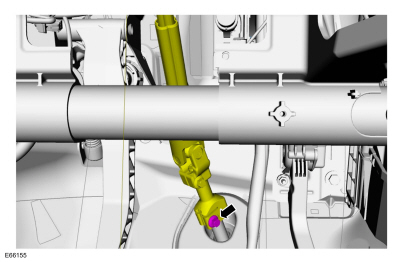

Remove and discard the steering column shaft-to-steering gear bolt.
WARNING:
Install a new steering column shaft bolt. Reuse
could result in bolt failure and loss of vehicle control. Failure to
follow this instruction may result in serious injury to vehicle
occupant(s).
Torque: 25 lb.ft (34 Nm)
 |
-
Remove and discard the steering column shaft bolt.
WARNING:
Install a new steering column shaft bolt. Reuse
could result in bolt failure and loss of vehicle control. Failure to
follow this instruction may result in serious injury to vehicle
occupant(s).
Torque: 25 lb.ft (34 Nm)
 |
Installation
-
To install, reverse the removal procedure.
