Ford Fiesta: Roof Opening Panel / Roof Opening Panel Alignment. General Procedures

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Roof Opening Panel / Roof Opening Panel Alignment. General Procedures

Adjustment

NOTE: The roof opening panel must be in the CLOSED position.

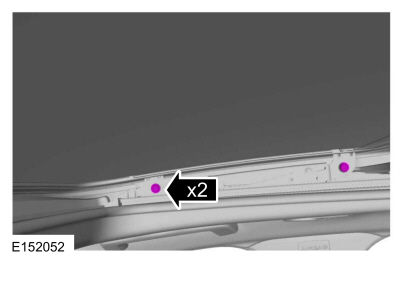

Loosen the roof opening panel bolts on both sides.

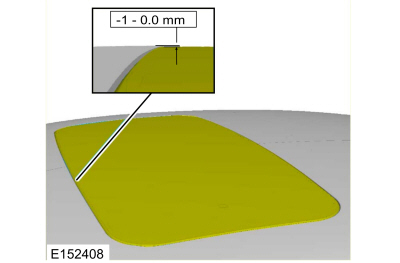

Measure and adjust the front of the roof opening panel glass to roof clearances as shown.

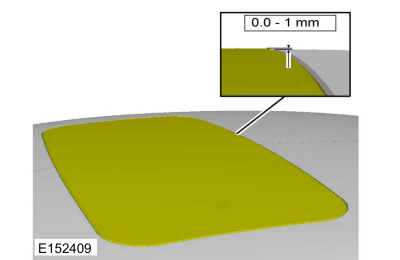

Measure and adjust the rear of the roof opening panel glass to roof clearances as shown.

Tighten the roof opening panel bolts on both sides.
Torque: 35 lb.in (4 Nm)

Initialize the power roof opening panel.
Refer to: Power Roof Opening Panel Initialization (501-17 Roof Opening Panel, General Procedures).

Power Roof Opening Panel Initialization. General Procedures

Initialization NOTE: A new roof opening panel motor only moves towards the vent position until it is initialized. NOTE: An initialization procedure that was interrupted or not completed can be started again after cycling the ignition from ON to OFF and back to ON again...

Air Deflector. Removal and Installation

Special Tool(s) / General Equipment Flat-Bladed Screwdriver Removal NOTE: Removal steps in this procedure may contain installation details...
