Ford Fiesta: Roof Opening Panel / Air Deflector. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Roof Opening Panel / Air Deflector. Removal and Installation

Special Tool(s) / General Equipment

Flat-Bladed Screwdriver

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTE: The roof opening panel glass must be in the fully open position.

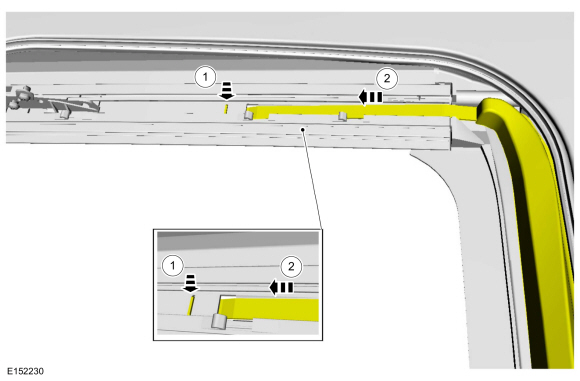

    On both sides.
    1. Depress the spring steel locating tab downward with a flat-bladed screwdriver.
      Use the General Equipment: Flat-Bladed Screwdriver
    1. Push the air deflector toward the rear of the vehicle.

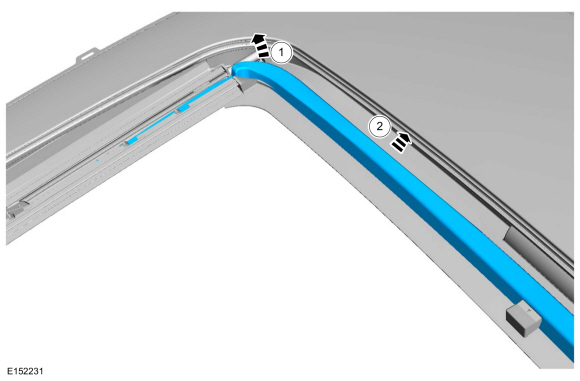

  1. On both sides.
    1. Tilt the air deflector assembly upward.
    1. Pull forward and remove air deflector assembly.

Installation

  1. NOTE: Make sure air deflector locating tabs are firmly locked in place.

    To install, reverse the removal procedure.
  1. Initialize the power roof opening panel.
    Refer to: Power Roof Opening Panel Initialization (501-17 Roof Opening Panel, General Procedures).
