Ford Fiesta: Exterior Lighting / Reversing Lamp Switch. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Lighting / Exterior Lighting / Reversing Lamp Switch. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02.

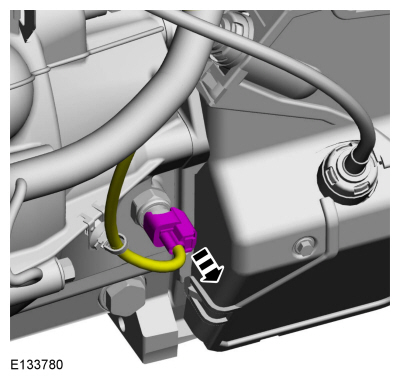

Disconnect the reversing lamp switch electrical connector.

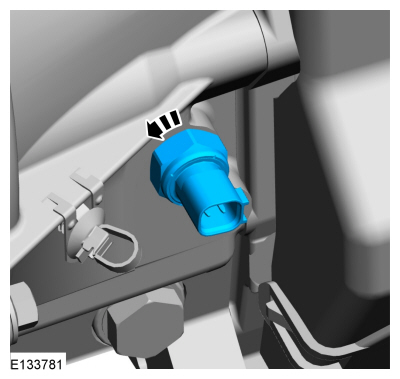

Remove the reversing lamp switch.

Installation

NOTE: Make sure the mating faces are clean and free of foreign material.

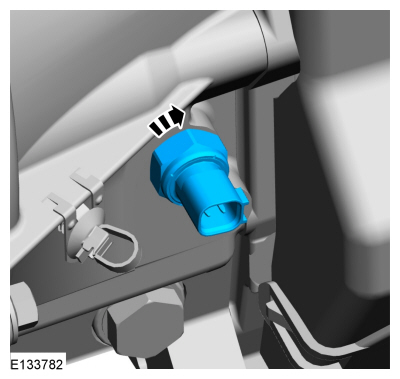

Install the reversing lamp switch.
Torque: 133 lb.in (15 Nm)

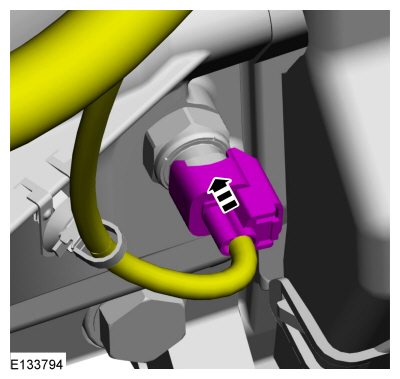

Connect the reversing lamp switch electrical connector.
