Ford Fiesta: Exterior Lighting / Headlamp Bulb. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

1.   WARNING: The bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.

   NOTE: Do not remove the headlamp bulb from the headlamp until just before a new bulb is installed. Removing the bulb for an extended period of time may affect headlamp bulb performance. Contaminants may enter the headlamp where they can settle on the lens and reflector. Never turn on the headlamps with the bulb removed.

   Make sure the headlamp switch and the ignition switch are in the OFF position.


Low beam bulb

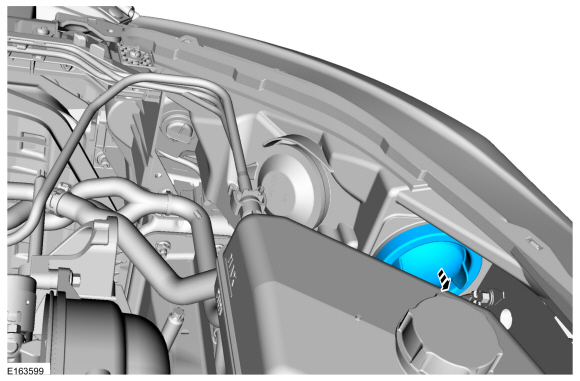

1. Remove the low beam headlamp cover.


1.

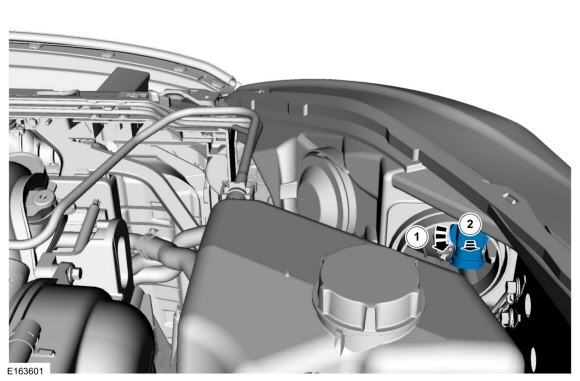

   1. Disconnect the electrical connector and rotate the bulb counter clock-wise.

   2. Remove the headlamp bulb.


High beam bulb

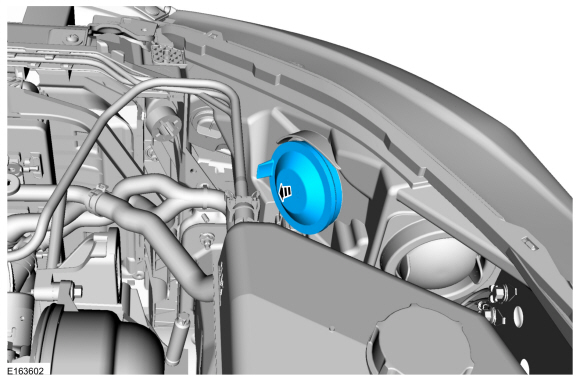

1. Remove the high beam headlamp cover.


1.

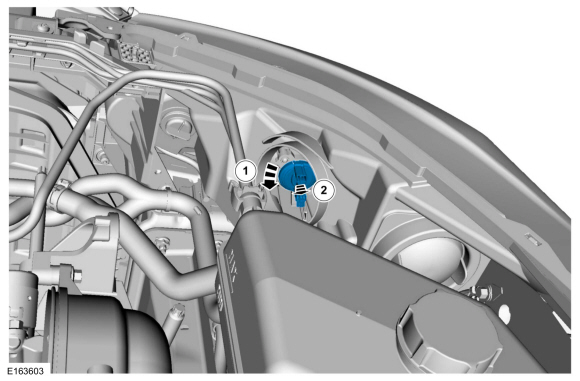

   1. Disconnect the electrical connector and rotate the bulb counter clock-wise.

   2. Remove the headlamp bulb.


Installation

1. To install, reverse the removal procedure.
