Ford Fiesta: Climate Control System - General Information / In-Vehicle Temperature Sensor. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Climate Control System / Climate Control System - General Information / In-Vehicle Temperature Sensor. Removal and Installation

Removal

Vehicles built prior to 2018

Remove the HVAC module.
Refer to: Heating, Ventilation and Air Conditioning (HVAC) Control Module (412-00 Climate Control System - General Information, Removal and Installation).

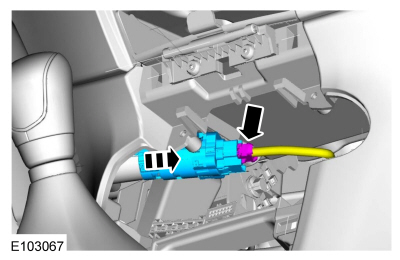

Disconnect the electrical connector and remove the in-vehicle temperature sensor.

Vehicles built in 2018 and newer

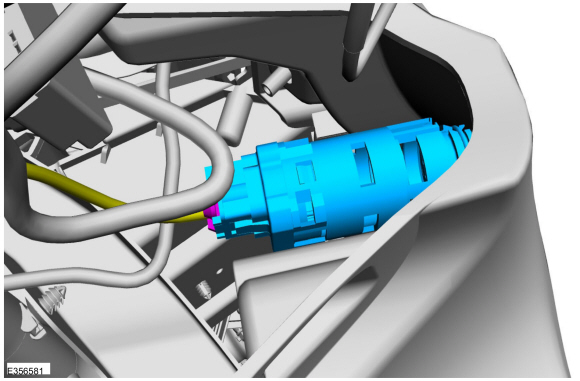

Remove the driver knee airbag.
Refer to: Driver Knee Airbag (501-20B Supplemental Restraint System, Removal and Installation).

Disconnect the electrical connector and remove the in-vehicle temperature sensor.

Installation

To install, reverse the removal procedure.
