Ford Fiesta: Glass, Frames and Mechanisms / Rear Door Glass Top Run. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Glass, Frames and Mechanisms / Rear Door Glass Top Run. Removal and Installation

Removal

NOTE: RH shown, LH similar.

Remove the rear door window glass.
Refer to: Rear Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

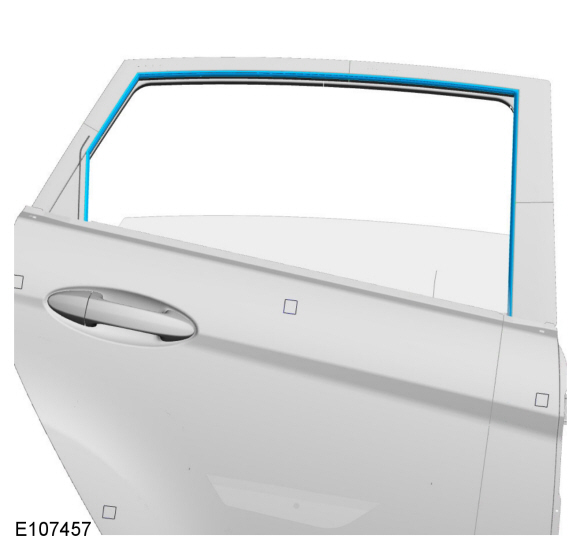

Remove the rear door glass top run.

Installation

To install, reverse the removal procedure.

If the door is equipped with one-touch up the power window motor must be initialized.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
