Ford Fiesta: Bumpers / Rear Bumper. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Bumpers / Rear Bumper. Removal and Installation

Removal

All vehicles

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear bumper cover.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

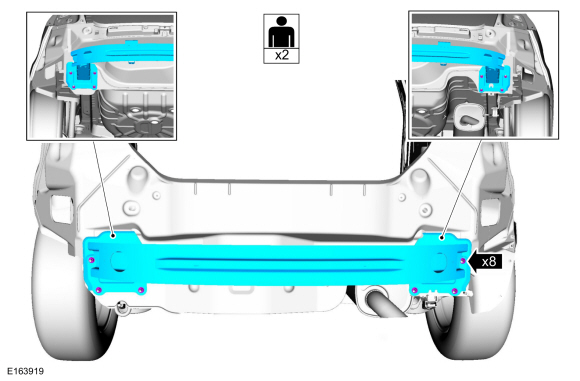

4-Door

Remove the nuts and the rear bumper.
Torque: 18 lb.ft (25 Nm)

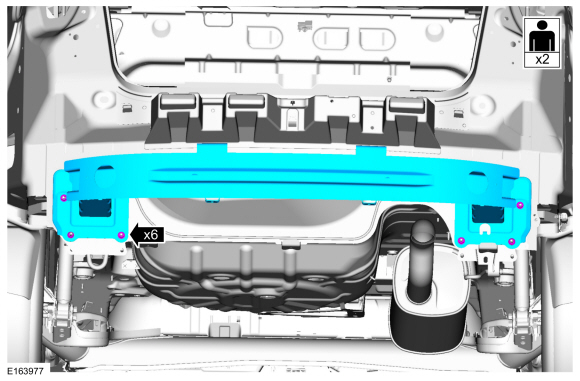

5-Door

Remove the nuts and the rear bumper.
Torque: 18 lb.ft (25 Nm)

Installation

To install, reverse the removal procedure.
