Ford Fiesta: Exterior Lighting / High Mounted Stoplamp. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Lighting / Exterior Lighting / High Mounted Stoplamp. Removal and Installation

Removal

4-door

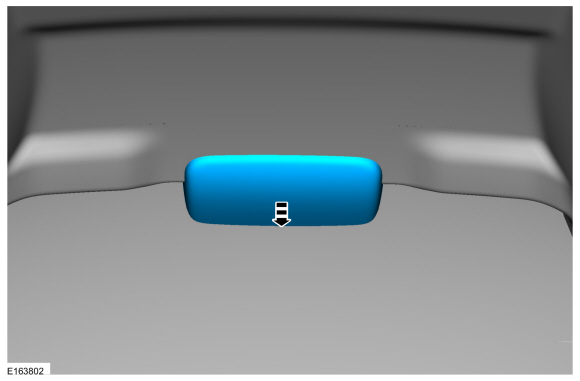

  1. Remove the high mounted stop lamp cover.

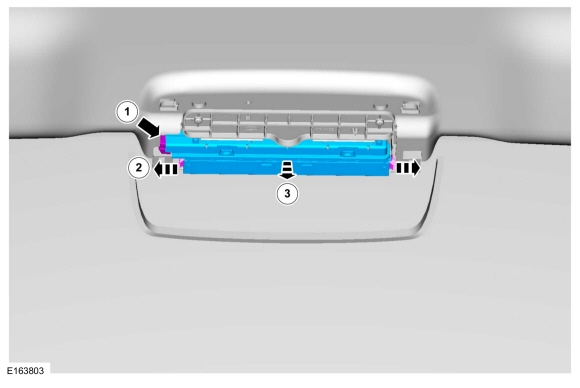

    1. Disconnect the high mounted stoplamp electrical connector.

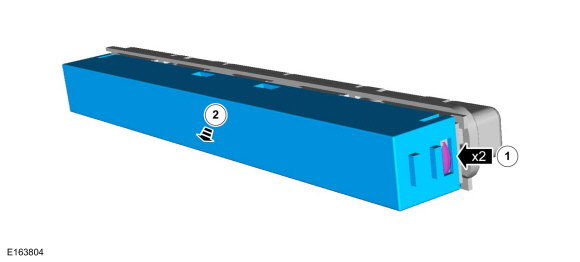

    1. Release the tabs.
    1. Remove the high mounted stoplamp.

  1. NOTE: If required.

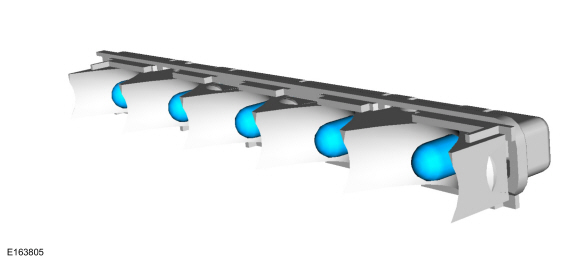

    1. Release the tabs.
    1. Remove the high mounted stoplamp lens.

  1. NOTE: If required.

    Remove the high mounted stop lamp bulbs.

5-door

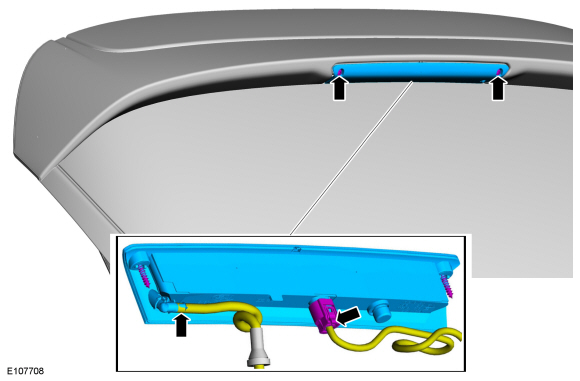

  1. Remove the high mounted stop lamp from the spoiler.
    • Remove the screws.
    • Disconnect the high mounted stoplamp electrical connector.
    • Disconnect the washer hose.

Installation

  1. To install, reverse the removal procedure.

    Headlamp Switch. Removal and Installation

    Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: Use a non-marring tool. Release and position the headlamp switch...

    Rear Lamp Assembly. Removal and Installation

    Removal 4-Door sedan rear outer lamp assembly NOTE: LH shown, RH similar. Remove the push pin retainer. Position aside the RH or LH luggage compartment side trim panel...
