Ford Fiesta: Horn / Horn - Component Location. Description and Operation
Ford Fiesta 2014 - 2019 Service Manual / Instrumentation and Warning Systems / Horn / Horn - Component Location. Description and Operation

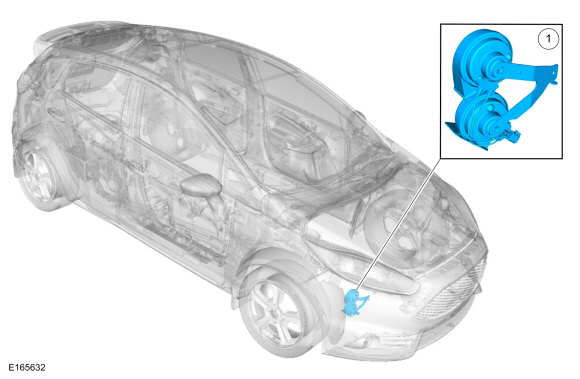

| Item | Description |
|---|---|
| 1 | Horn Comments: Located behind lower engine cover. |
Horn
..
Horn - System Operation and Component Description. Description and Operation
System Operation
System Diagram
Item
Description
1
Horn
2
Driver Airbag
3
Horn Switch
4
Clockspring
5
BCM
Horn Operation
The horn switch consists of a set of contacts separated by springs...
Other information:
Ford Fiesta 2014 - 2019 Service Manual: Transmission. Installation
Special Tool(s) / General Equipment 205-115A (205-115) Installer, Drive Pinion Seal Transmission Jack Retaining Strap Wooden Block Materials Name Specification Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing GreaseXG-11 WSS-M1C267-A1 Apply a thin coating of grease on the input shaft...
Ford Fiesta 2014 - 2019 Service Manual: Camshaft Seal. Removal and Installation
Special Tool(s) / General Equipment 303-1532Installer, Camshaft SealTKIT-2010B-FLMTKIT-2010B-ROW 303-409 (T92C-6700-CH) Remover, Crankshaft SealTKIT-1992-FH/FMH/FLMHTKIT-1993-LMH/MH Materials Name Specification Engine Oil - SAE 5W-20 - Synthetic Blend Motor OilXO-5W20-Q1SP WSS-M2C945-B1 Removal Remove the VCT unit..
