System Operation

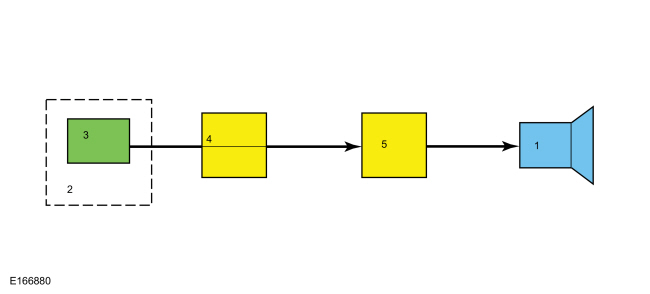

System Diagram
| Item | Description |
|---|---|
| 1 | Horn |
| 2 | Driver Airbag |
| 3 | Horn Switch |
| 4 | Clockspring |
| 5 | BCM |
Horn Operation
The horn switch consists of a set of contacts separated by springs. One side is connected to ground and the other side is connected to the horn signal circuit. When the driver airbag is pressed, it pushes down on the switch, collapsing the springs and allowing the contacts to touch. When the contacts touch, it closes the circuit through the clockspring to the BCM , and provides a ground signal to the BCM . The BCM then provides voltage to the horn, enabling the horn to sound.
Horn. Diagnosis and Testing
DTC Chart(s)
DTC Chart: Horn
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...
