Ford Fiesta: Electronic Engine Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Fuel Rail Pressure (FRP) Sensor. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Electronic Engine Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Fuel Rail Pressure (FRP) Sensor. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Release the fuel system pressure.
    Refer to: Fuel System Pressure Release (310-00B Fuel System - General Information - 1.6L EcoBoost (132kW/180PS) – Sigma, General Procedures).
  1. Disconnect the battery ground cable.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

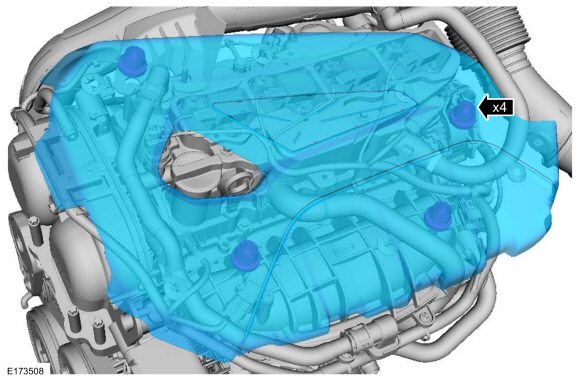

  1. Remove engine appearance cover.

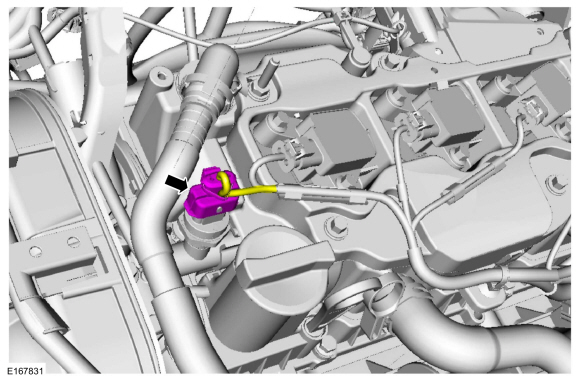

  1. Disconnect the FRP sensor electrical connector.

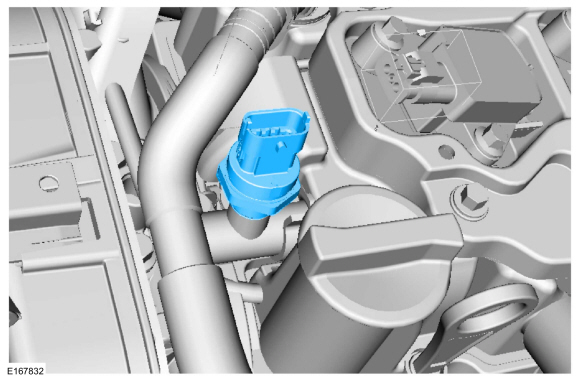

  1. Remove the FRP sensor.

Installation

    • Install and tighten the FRP sensor.
      Torque: 24 lb.ft (32.5 Nm)
  1. Connect the FRP sensor electrical connector.
  1. Install engine appearance cover.
  1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
