Ford Fiesta: Fuel Charging and Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Fuel Charging and Controls - Component Location. Description and Operation
Ford Fiesta 2014 - 2019 Service Manual / Engine / Fuel Charging and Controls - 1.6L EcoBoost (132kW/180PS) – Sigma / Fuel Charging and Controls - Component Location. Description and Operation
1.6L EcoBoost

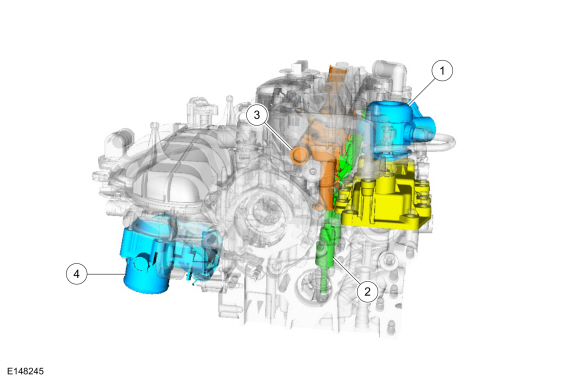

| Item | Description |
|---|---|
| 1 | Fuel injection pump |
| 2 | Fuel injector |
| 3 | Fuel rail |
| 4 | Throttle Body (TB) |
FPDM (fuel pump driver module)

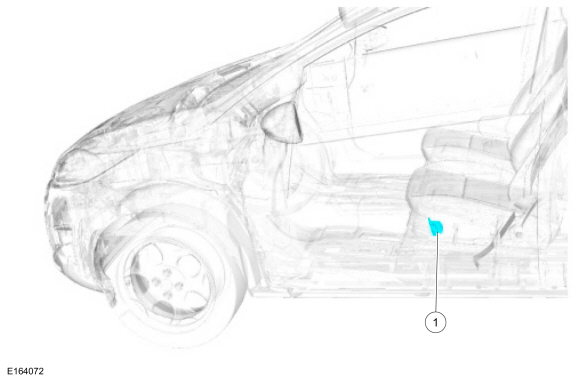

| Item | Description |
|---|---|
| 1 | FPDM (fuel pump driver module). Comments: The FPDM (fuel pump driver module) is located under the carpet and under left front seat attached to the rear of the front cross floor support in front of the left front seat. |
Fuel Charging and Controls. Description and Operation
System Operation
For System Operation, Refer to Powertrain Control/Emissions Diagnosis (PC/ED) manual. See Section 1 Description and Operation...
