Ford Fiesta: Glass, Frames and Mechanisms / Front Door Glass Top Run. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Glass, Frames and Mechanisms / Front Door Glass Top Run. Removal and Installation

Removal

NOTE: LH side shown, RH side similar.

Remove the front door window glass.
Refer to: Front Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

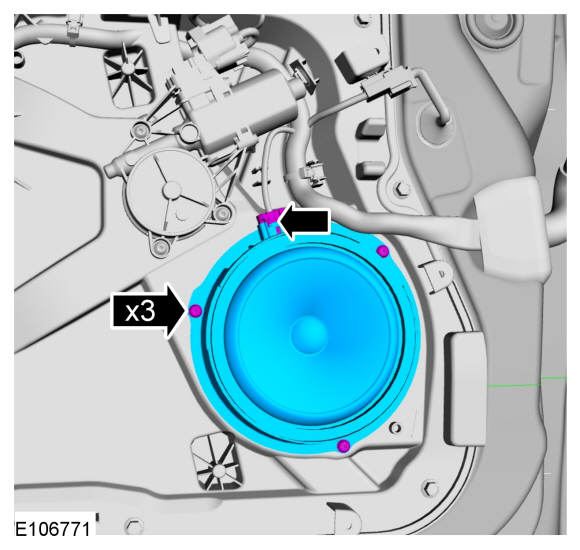

Remove the front door speaker.
- Disconnect the electrical connector and position aside the wiring harness.
- Remove the retainers and the front door speaker.

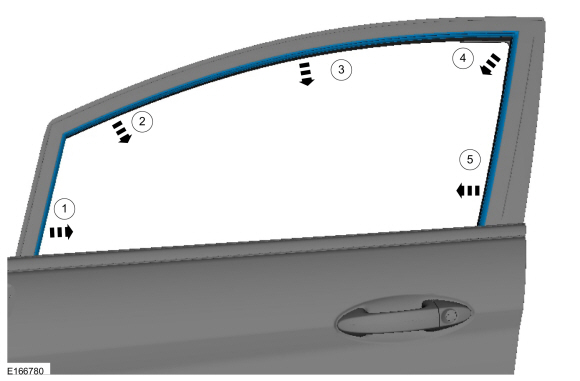

Remove the front door glass top run.

Installation

To install, reverse the removal procedure.

If the door is equipped with one-touch up and down, carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
