Ford Fiesta: Front End Body Panels / Cowl Panel. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Body and Paint / Front End Body Panels / Cowl Panel. Removal and Installation

Removal

  1. Remove the cowl panel grille.
    Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).
  1. On both sides, remove the headlamp assembly.
    Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

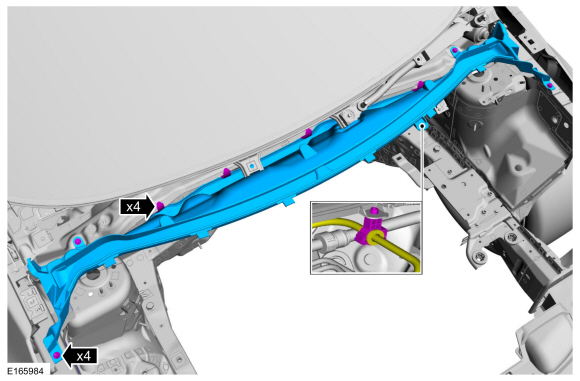

  1. Detach the washer hose retainer, remove the bolts, release the clips and remove the cowl panel.

Installation

  1. To install, reverse the removal procedure.
