Removal

NOTE: Removal steps in this procedure may contain installation details.

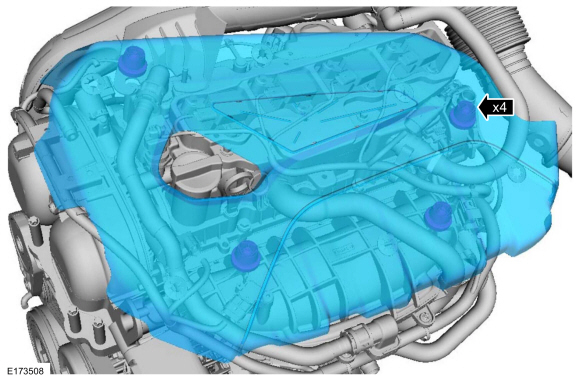

Remove the engine appearance cover.

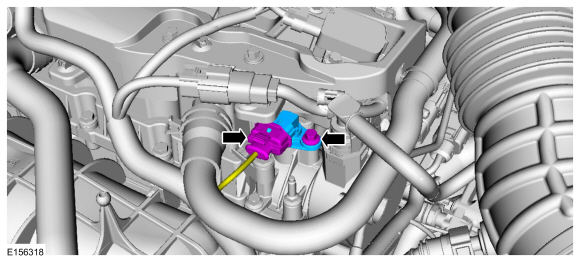

Disconnect the CMP sensor electrical connector, remove the retainer and the CMP sensor.
Torque: 80 lb.in (9 Nm)

Installation

To install, reverse the removal procedure.
