Ford Fiesta: Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma / Air Cleaner. Removal and Installation

Ford Fiesta 2014 - 2019 Service Manual / Engine / Intake Air Distribution and Filtering - 1.6L EcoBoost (132kW/180PS) – Sigma / Air Cleaner. Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

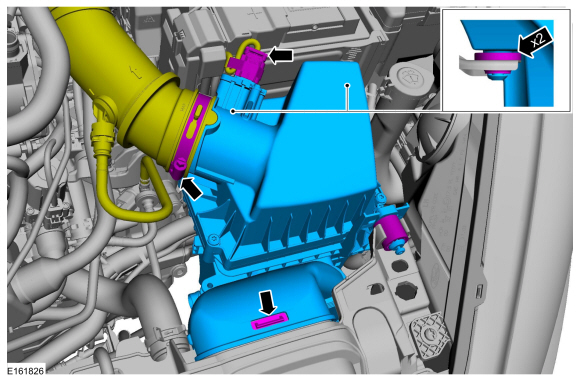

- Disconnect the IAT sensor electrical connector.
- Loosen the clamp and position aside the air cleaner outlet pipe.
  Torque: 44 lb.in (5 Nm)
- Release the tab and remove the air cleaner assembly.

Installation

To install, reverse the removal procedure.
