Ford Fiesta: Engine System - General Information / Valve Guide Inner Diameter. General Procedures

Ford Fiesta 2014 - 2019 Service Manual / Engine / Engine System - General Information / Valve Guide Inner Diameter. General Procedures

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

NOTE: Valve guides tend to wear in an hourglass pattern. The ball gauge can be inserted into the combustion chamber side of the valve guide, if necessary.

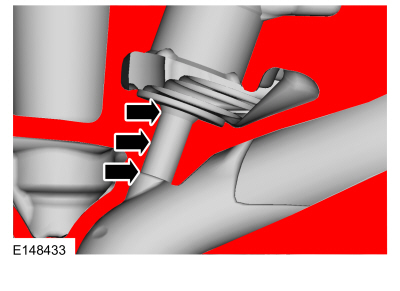

- Use a ball gauge to determine the inside diameter of the valve guides in 2 directions at the top, middle and bottom of the valve guide.
- Measure the ball gauge with a micrometer.
- If the valve guide is not within specifications, install a new cylinder head assembly.

Piston Selection. General Procedures

Check NOTE: Refer to the appropriate Section 303-01 for the specifications. NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston...

Valve Stem Diameter. General Procedures

Check NOTE: Refer to the appropriate Section 303-01 for the specification. Measure the diameter of each intake and exhaust valve stem at the points shown...
